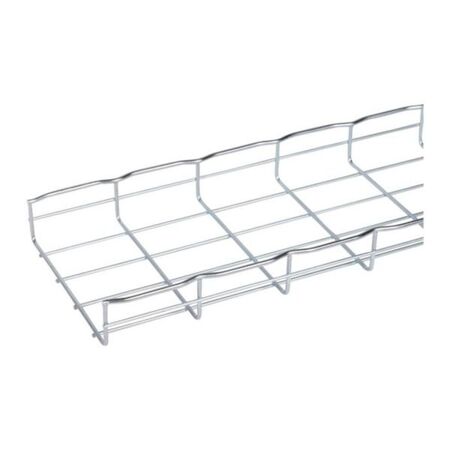

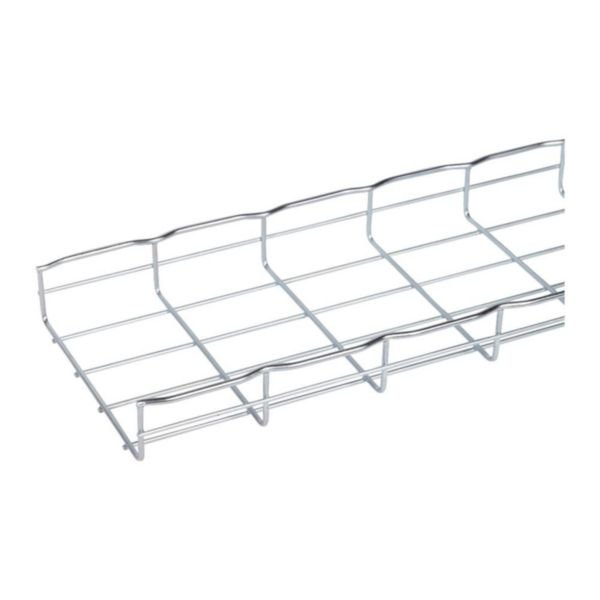

Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Design | Corrosion Resistant | 200mm Width | @Each of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. With a U-shape profile and hot-dip galvanised surface, it offers enhanced corrosion resistance and durability. Ideal for routing electrical cables in data centers and factories, this tray ensures safety and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Design | Corrosion Resistant | 200mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000093
Alternatively Known As: Steel Wire Cable Tray, Galvanised Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 200 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 10293 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 1.3935 kg/m
- Integrated partition: None
- Model: Without connector
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 54mm x 3000mm x 200mm
- Weight: 4.18 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Hot-dip galvanised surface protection for enhanced corrosion resistance
- Suitable for circuit integrity applications
- Steel construction for durability and strength
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with electrical and building standards and to maintain cable integrity and safety.
Applications
- Cable management in industrial and commercial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion resistance and cable protection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 200mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
