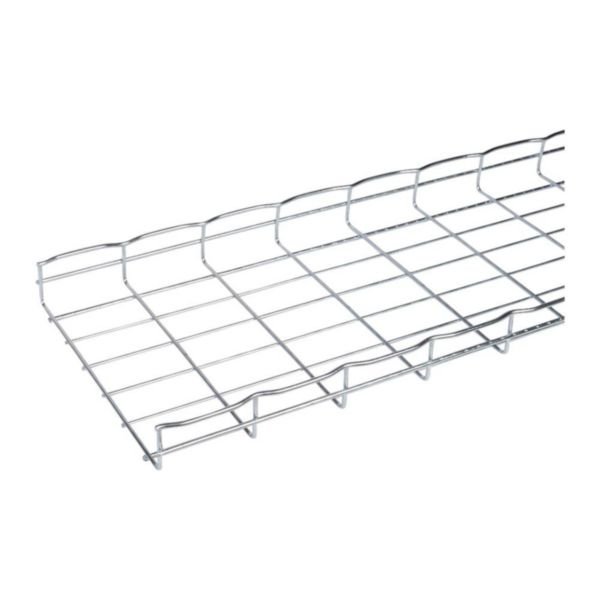

Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 300mm Width | @Each of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. With a robust U-shape profile and hot-dip galvanised steel construction, it offers enhanced corrosion resistance and natural ventilation for optimal cable performance. Ideal for data centers and factories, this tray supports circuit integrity applications and operates effectively in temperatures ranging from -20°C to 120°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 300mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000103
Alternatively Known As: Steel Wire Cable Tray, Galvanised Cable Tray, Hot Dip Galvanised Cable Tray, U-Shape Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 300 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 15453 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Colour: Zinc
- Weight: 2.123 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Suitable for circuit integrity: Yes
- Model: Without connector
- Dimensions (H x L x W): 54mm x 3000mm x 300mm
- Weight: 6.37 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- Hot-dip galvanised steel construction for enhanced corrosion resistance
- U-shape profile for robust cable support
- Suitable for circuit integrity applications
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with electrical and building standards and to maintain cable integrity and safety.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life, reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 300mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
