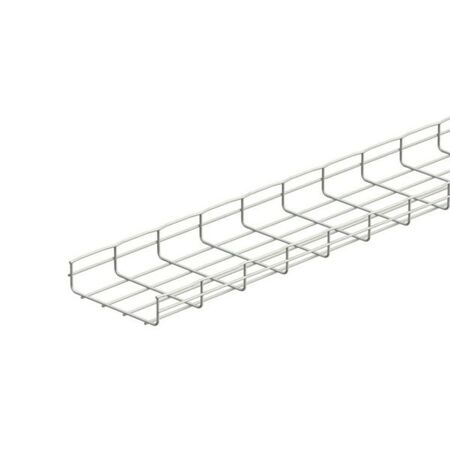

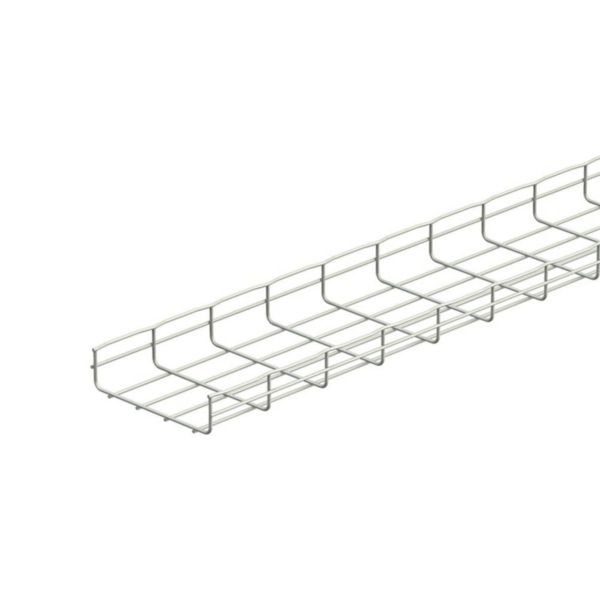

Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 450mm Width | @Each of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a robust U-shape profile and hot-dip galvanised surface for superior corrosion resistance. Ideal for commercial wiring and data centers, this tray supports operating temperatures from -20°C to 120°C, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 450mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000253
Alternatively Known As: Steel wire cable tray, Galvanised cable tray, Wire mesh cable tray, Cable management tray
Technical Specifications
- Profile shape: U-shape
- Width: 450 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 22968 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Operating temperature range: -20°C to 120°C
- Weight: 3.39 kg/m
- Dimensions (H x L x W): 54mm x 3000mm x 450mm
- Weight: 10.18 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Hot-dip galvanised surface protection for corrosion resistance
- U-shape profile for robust cable support
- Suitable for operating temperatures from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Industrial cable management
- Commercial building wiring
- Data centers and server rooms
- Electrical installations requiring durable cable support
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 450mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
