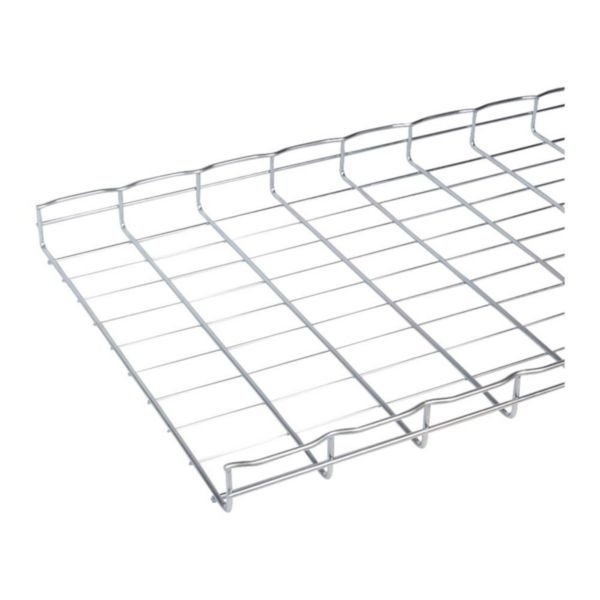

Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 500mm Width | @Each of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in industrial, commercial, and residential settings. Featuring a robust U-shape profile and hot-dip galvanised steel construction, it offers enhanced corrosion resistance and natural ventilation for optimal cable performance. Ideal for supporting and routing electrical cables, this tray ensures compliance with electrical codes and provides long-lasting durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 500mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000303
Alternatively Known As: Galvanised Steel Wire Cable Tray, Hot Dip Galvanised Cable Tray, Steel Wire Mesh Cable Tray, Cable Tray 500x54x3000mm
Technical Specifications
- Profile shape: U-shape
- Width: 500 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 25523 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Colour: Zinc
- Weight: Approximately 3.61 kg per meter
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- No integrated partition
- Not suitable for circuit integrity
- Dimensions (H x L x W): 54mm x 3000mm x 500mm
- Weight: 10.8 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Hot-dip galvanised steel construction for enhanced corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper support, secure fixing, and compliance with electrical and building codes.
Applications
- Cable management in industrial, commercial, and residential electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 500mm x 54mm x 3m Length is available now for immediate purchase. Ideal for industrial, commercial, and residential cable management applications.
