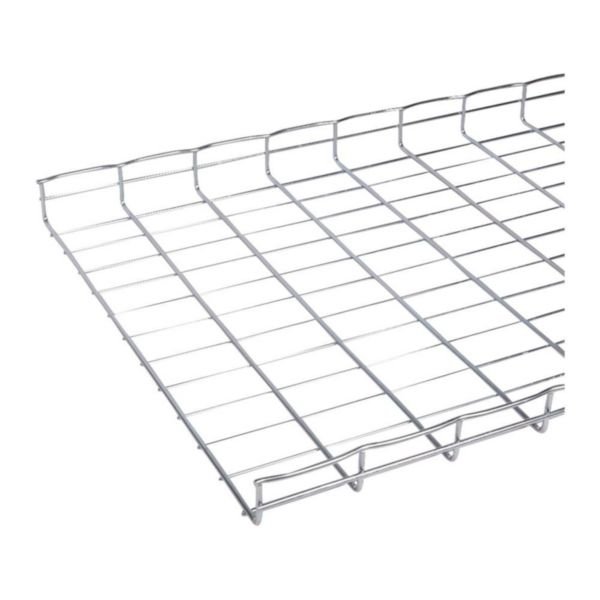

Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 600mm Width | @Each of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. With a robust U-shape profile and hot-dip galvanised steel construction, it offers enhanced corrosion resistance and natural ventilation for optimal cable performance. Ideal for data centers and factories, this tray supports a wide range of electrical installations while ensuring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 600mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000403
Alternatively Known As: Galvanised Steel Cable Tray, Wire Mesh Cable Tray, Hot Dip Galvanised Cable Tray, Steel Wire Cable Tray 600mm
Technical Specifications
- Profile shape: U-shape
- Width: 600 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 30633 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Colour: Zinc
- Weight: 4.05 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- Suitable for circuit integrity: No
- Integrated partition: None
- Dimensions (H x L x W): 54mm x 3000mm x 600mm
- Weight: 12.15 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Hot-dip galvanised steel construction for enhanced corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 600mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
