Cablofil Pre-Galvanised Clamp Plate Kit | Integrated Bolt & Nut | Corrosion Resistant Steel | @Bag of 1 | by Cablofil
The Cablofil Pre-Galvanised Large Clamp Plate Kit features an integrated bolt and nut, designed for secure fastening in cable management systems. Made from continuously galvanised steel, it offers excellent corrosion resistance and is suitable for cable support systems with widths from 50 to 600 mm. Ideal for industrial and commercial applications, this kit ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Clamp Plate Kit | Integrated Bolt & Nut | Corrosion Resistant Steel | @Bag of 1 | by Cablofil
Brand: Cablofil
SKU: CM558071
Alternatively Known As: Cable Tray Clamp Kit, Wire Mesh Tray Fixing Kit, Cable Management Clamp Plate Kit
Technical Specifications
- Material: Steel, continuously galvanised
- Type of connection: Screw connector
- Suitable for wire mesh tray: Yes
- Suitable for cable ladder: No
- Suitable for cable tray: No
- Suitable for cable support system width: 50-600 mm
- Length: 9 mm
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Dimensions (H x L x W): 9mm x 100mm x 50mm
- Weight: 0.2 kg
Key Features

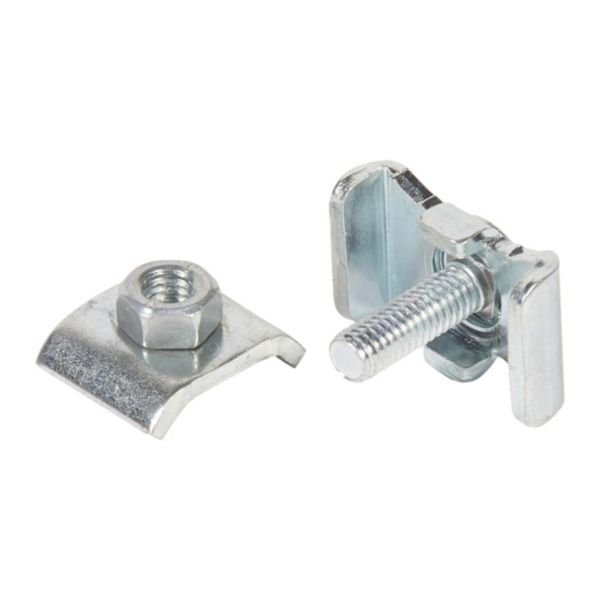

- Kit includes large clamp plate with integrated nut and small clamp plate with integrated bolt
- Screw connector type for secure fastening
- Continuously galvanised steel for corrosion resistance
- Halogen free material
- Suitable for cable support system widths from 50 to 600 mm
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems to ensure secure and compliant fixing.
Applications
- Suitable for wire mesh tray cable management systems
- Used in electrical wiring installations for securing cable trays
- Ideal for industrial and commercial cable support systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel construction extends product life and reduces need for replacement
- Halogen free materials reduce environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies. Please refer to Cablofil for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Large Clamp Plate Fixing Kit is available for immediate purchase, ideal for industrial and commercial cable management applications.
