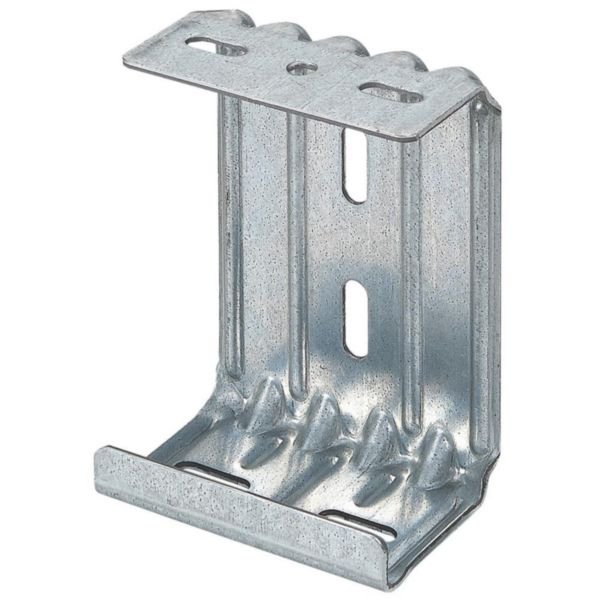

Cablofil Pre-Galvanised Steel Cable Tray Ceiling Support Bracket | 1800 N Load Capacity | Corrosion Resistant | @Each of 1 | by Cablofil
The Cablofil Pre-Galvanised Steel Cable Tray Ceiling Support Bracket is designed for robust cable management in commercial and industrial settings. With a load-bearing capacity of 1800 N and suitable for tray widths from 50 to 300 mm, this durable bracket ensures reliable support for your cable trays. Its pre-galvanised steel construction offers excellent corrosion resistance, making it a long-lasting solution for your installation needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Steel, continuously galvanised
- Suitable tray widths: 50 to 300 mm
- Load bearing capacity: 1800 N
- Length: 65.5 mm
- Width: 100 mm
- Height: 135 mm
- Diameter: 9 mm
- Thread size: Metric 0
- Non-adjustable, non-hinging design
- Not suitable for circuit integrity applications
- Dimensions (H x L x W): 135mm x 65.5mm x 100mm
- Weight: 0.5 kg
Key Features
- Pre-galvanised steel construction for corrosion resistance
- Designed for use with 50 to 300 mm wide cable trays
- Load bearing capacity of 1800 N
- Continuously galvanised surface protection
- Durable steel material ensuring long service life
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable tray systems and structural support requirements to ensure safety and compliance.
Applications
- Supports cable trays in ceiling installations
- Suitable for cable management in commercial and industrial buildings
- Used in electrical wiring and cable routing systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel extends product lifespan reducing replacement frequency
- Galvanised coating protects against corrosion, minimizing environmental waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Ceiling Support Bracket UCSGS is available for immediate purchase, ideal for commercial and industrial cable management applications.
