Cablofil Pre-Galvanised Steel Cable Tray Luminaire Support | 50mm Width | Corrosion Resistant | Screw Mounting | @Each of 1 | by Cablofil

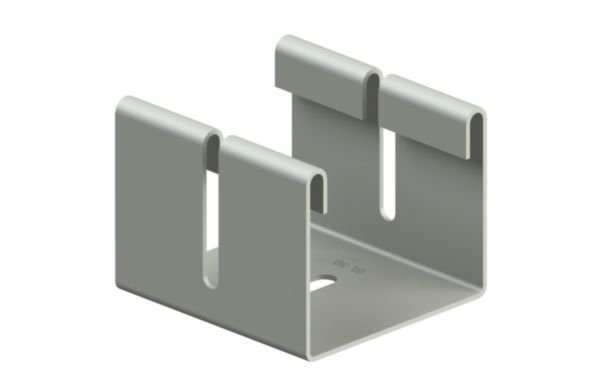

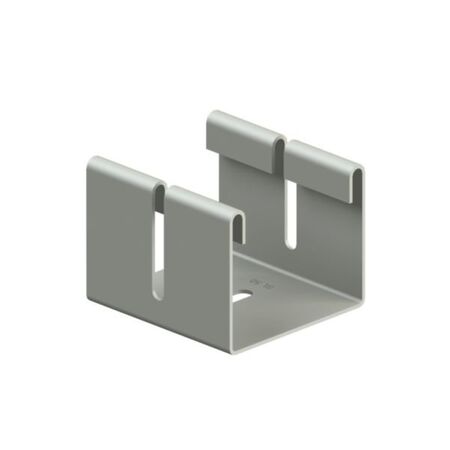

The Cablofil Pre-Galvanised Steel Cable Tray Luminaire Support is designed for 50mm wide cable trays, providing secure lighting support with its screw mounting feature. Made from durable steel and featuring continuous galvanisation for corrosion resistance, it's perfect for industrial and commercial applications, ensuring reliable performance in cable management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Cable Tray Luminaire Support | 50mm Width | Corrosion Resistant | Screw Mounting | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM585180
Alternatively Known As: Cable Tray Luminaire Support, Steel Cable Tray Support, Galvanised Cable Tray Bracket
Technical Specifications
- Material: Steel
- Surface Protection: Continuously galvanised
- Plate Height: 56 mm
- Plate Width: 69 mm
- Type of Fastening: Screw mounting
- Compatible Tray Width: 50 mm
- Compatible Tray Depths: 30 mm (CF 30) and 54 mm (CF 54)
- Dimensions (H x L x W): 56mm x 69mm x 50mm
- Weight: 0.3 kg
Key Features
- Designed for use with 50 mm wide cable trays
- Compatible with 30 mm and 54 mm deep trays
- Screw mounting fastening type for secure installation
- Continuously galvanised surface protection for corrosion resistance
- Made from steel material for durability
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural standards.
Applications
- Supports for 30 mm (CF 30) and 54 mm (CF 54) deep cable trays with 50 mm width
- Suitable for lighting support in cable tray installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel offers long-lasting corrosion resistance, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Luminaire Support 50mm is available for immediate purchase, ideal for industrial and commercial cable management and lighting support applications.
