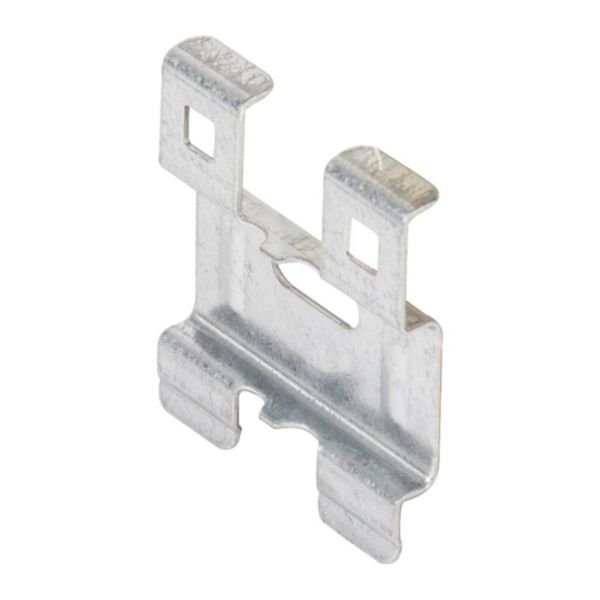

Cablofil Pre-Galvanised Steel Wire Cable Tray Base Coupler | Screwless Connector | Hinged Joint for Flexibility | Zinc Finish | @Each of 1 | by Cablofil
The Cablofil Pre-Galvanised Steel Wire Cable Tray Base Coupler features a screwless connector for easy installation and a hinged horizontal joint for added flexibility. Designed specifically for wire mesh trays, it operates within a temperature range of -20°C to 120°C, making it ideal for industrial and commercial cable management applications. Its halogen-free material ensures a safer environmental impact in case of fire.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Wire Cable Tray Base Coupler | Screwless Connector | Hinged Joint for Flexibility | Zinc Finish | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM558410
Alternatively Known As: Wire Mesh Cable Tray Joiner, Cable Tray Base Coupler, Cable Tray Connector, Luminaire Support Coupler
Technical Specifications
- Material: Pre-galvanised steel
- Type of connection: Screwless connector
- Hinged joint horizontal: Yes
- Hinged joint vertical: No
- Suitable for wire mesh tray: Yes
- Suitable for cable ladder: No
- Suitable for cable tray: No
- Suitable for cable support system width: 100-600 mm
- Suitable for cable support system height: 25 mm
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Colour: Zinc
- Dimensions (H x L x W): 25mm x 55mm x 55mm
- Weight: 0.2 kg
Key Features
- Screwless connector for easy installation
- Hinged horizontal joint for flexibility
- Pre-galvanised steel construction for corrosion resistance
- Halogen free material
- Operating temperature range from -20°C to 120°C
- Suitable for wire mesh trays only, not for cable ladders or trays
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems to ensure secure and compliant assembly.
Applications
- Used as a joiner for the bottom of wire mesh cable trays
- Can be used as a luminaire support in cable management systems
- Suitable for wire mesh trays with widths from 100 to 600 mm and heights of 25 mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel offers long-lasting corrosion resistance reducing replacement frequency
- Halogen free materials contribute to safer environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Base Coupler is available for immediate purchase, ideal for industrial and commercial cable management applications.
