Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm | 100mm Width | Corrosion Resistant | 1300 N Safe Load | @Each of 1 | by Cablofil

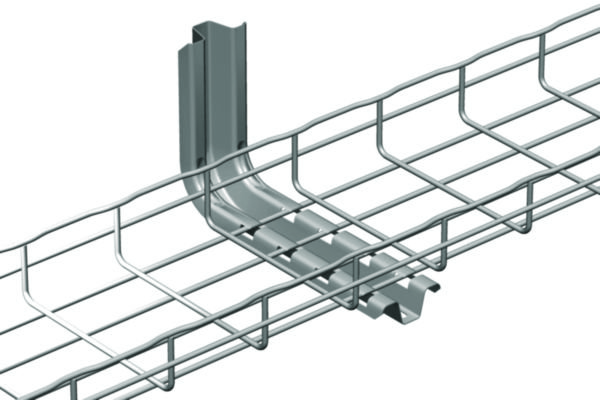

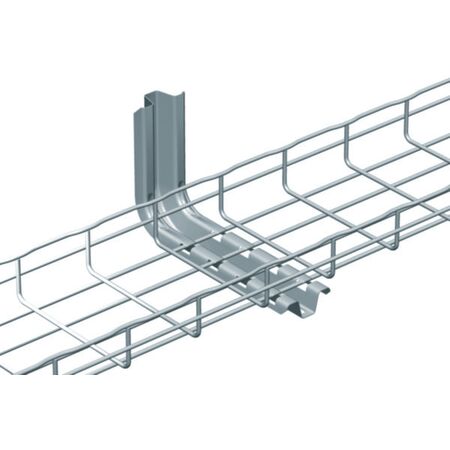

The Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm is designed for robust cable management in industrial and commercial settings. With a 100mm width and a safe working load of 1300 N, this arm features a slot and tab design for easy installation and is made from continuously galvanised steel for enhanced corrosion resistance. Ideal for wall mounting in electrical wiring and data cabling infrastructure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm | 100mm Width | Corrosion Resistant | 1300 N Safe Load | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556100
Alternatively Known As: Cable Tray Cantilever Arm, Cable Tray Wall Bracket, Steel Wire Cable Tray Support Arm
Technical Specifications
- Length: 178 mm
- Width: 32 mm
- Height: 170 mm
- Suitable for cable support system width: 100 mm
- Angle: 90°
- Safe working load: 1300 N (IEC 61537)
- Material: Steel
- Surface protection: Continuously galvanised
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 170mm x 178mm x 32mm
- Weight: 0.5 kg
Key Features
- Slot and tab design for easy fixing and installation
- Continuously galvanised steel for corrosion resistance
- Safe working load of 1300 N according to IEC 61537
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building standards.
Applications
- Cable management and support in industrial and commercial electrical installations
- Wall mounting for steel wire cable tray systems
- Suitable for use in electrical wiring and data cabling infrastructure
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel construction extends product life and reduces replacement frequency
- Halogen free materials reduce environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Profile Cantilever Arm 100mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
