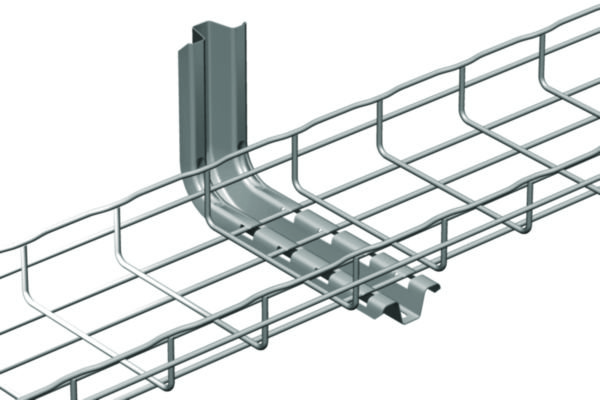

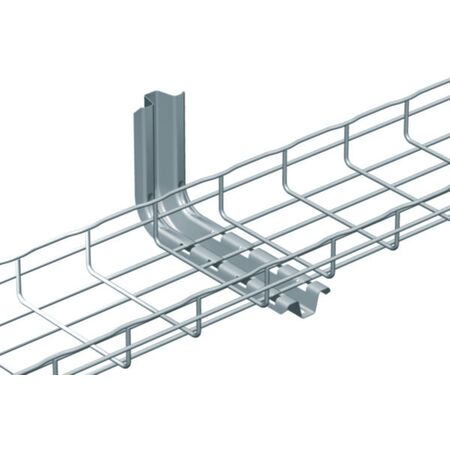

Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm | 1100 N Safe Working Load | Corrosion Resistant | @Each of 1 | by Cablofil
The Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm is designed for robust cable support in industrial and commercial settings. With a safe working load of 1100 N and a corrosion-resistant galvanised finish, it ensures reliable performance in various applications. Ideal for mounting cable trays on walls, this arm supports systems with widths from 100mm to 150mm, making it a versatile choice for your electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm | 1100 N Safe Working Load | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556110
Alternatively Known As: Cable Tray Wall Bracket, Cantilever Arm for Cable Tray, Steel Cable Tray Support Arm
Technical Specifications
- Length: 228 mm
- Width: 32 mm
- Height: 170 mm
- Suitable for cable support system width: 100-150 mm
- Angle: 90-90°
- Safe working load: 1100 N (IEC 61537)
- Material: Steel
- Surface protection: Continuously galvanised
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 170mm x 228mm x 32mm
- Weight: 1.5 kg
Key Features
- Slot and tab design for easy fixing and installation
- Continuously galvanised steel for corrosion resistance
- Safe working load of 1100 N according to IEC 61537
- Suitable for circuit integrity applications
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building standards.
Applications
- Supports cable tray systems in industrial and commercial electrical installations
- Used for mounting and supporting cable trays on walls or other structures
- Suitable for cable support systems with widths from 100mm to 150mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel construction extends product life and reduces replacement frequency
- Halogen free materials reduce environmental and health impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Profile Cantilever Arm 150mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
