Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm | 500 N Safe Working Load | Corrosion Resistant | @Each of 1 | by Cablofil

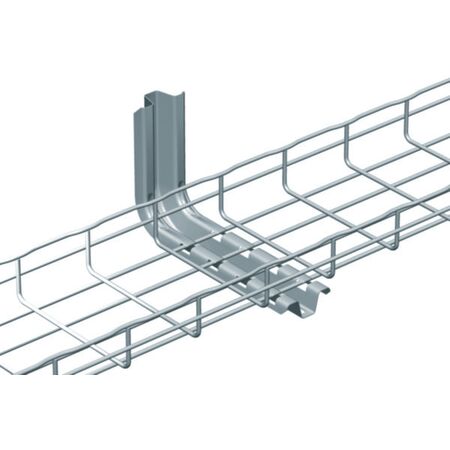

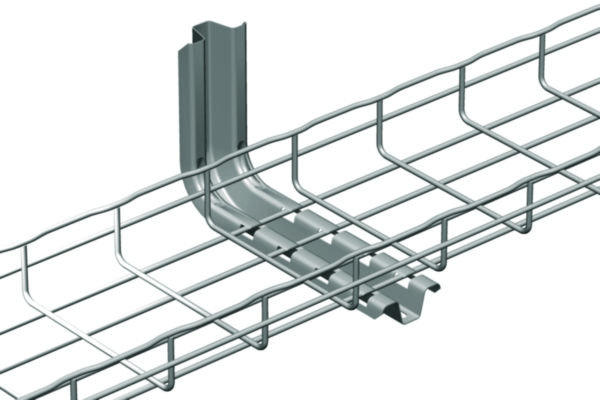

The Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm is designed for robust cable management in industrial and commercial settings. With a safe working load of 500 N and a corrosion-resistant galvanised finish, it supports cable systems ranging from 100 to 500 mm in width. Ideal for construction and infrastructure projects, this arm ensures secure installation and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm | 500 N Safe Working Load | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556150
Alternatively Known As: Cable Tray Support Arm, Cantilever Cable Tray Bracket, Steel Cable Tray Support, Galvanised Cable Tray Arm
Technical Specifications
- Length: 528 mm
- Width: 67 mm
- Height: 170 mm
- Suitable for cable support system width: 100-500 mm
- Safe working load: 500 N (IEC 61537)
- Material: Steel
- Surface protection: Continuously galvanised
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Angle: 90-90°
- Model: Wall bracket
- Dimensions (H x L x W): 170mm x 528mm x 67mm
- Weight: 1.5 kg
Key Features
- Slot and tab design for easy fixing and installation
- Continuously galvanised steel for corrosion resistance
- Safe working load of 500 N according to IEC 61537
- Suitable for cable support system widths from 100 to 500 mm
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure fixing and compliance with structural and electrical safety standards.
Applications
- Supports cable management systems in industrial and commercial electrical installations
- Used in cable tray systems for routing and supporting electrical cables
- Suitable for use in construction, manufacturing, and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel construction extends product life and reduces replacement frequency
- Halogen free materials reduce environmental impact in case of fire
- Durable design minimizes waste and supports sustainable cable management
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Profile Cantilever Arm 450mm is available for immediate purchase, ideal for industrial and commercial cable management support applications.
