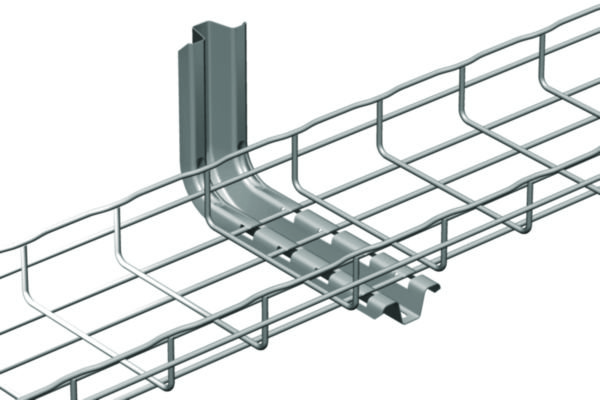

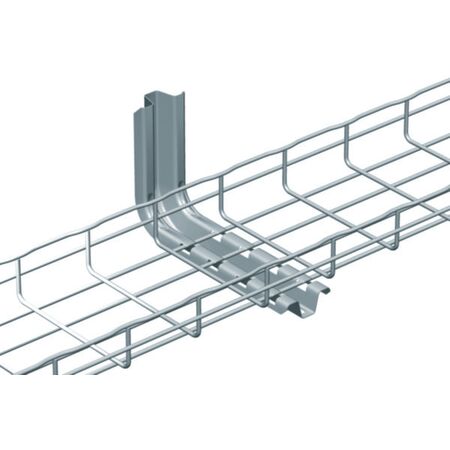

Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm | 730 N Safe Working Load | Corrosion Resistant | @Each of 1 | by Cablofil
The Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm is designed for robust cable management in industrial and commercial settings. With a safe working load of 730 N and a corrosion-resistant finish, it ensures reliable support for cable tray systems. Ideal for widths from 100mm to 300mm, this arm is perfect for wall mounting and circuit integrity applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Length: 378 mm
- Width: 67 mm
- Height: 170 mm
- Suitable for cable support system width: 100-300 mm
- Angle: 90-90°
- Safe working load: 730 N (IEC 61537)
- Material: Steel
- Surface protection: Continuously galvanised
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 170mm x 378mm x 67mm
- Weight: 1.5 kg
Key Features
- Slot and tab design for easy fixing and installation
- Continuously galvanised steel for corrosion resistance
- Safe working load of 730 N according to IEC 61537
- Suitable for circuit integrity applications
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems to ensure compliance with safety standards and secure mounting.
Applications
- Supports cable tray systems in industrial and commercial electrical installations
- Wall mounting for cable management in electrical wiring setups
- Suitable for cable support systems with widths from 100mm to 300mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel construction extends product life and reduces replacement frequency
- Halogen free materials reduce environmental and health impact in case of fire
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Profile Cantilever Arm 300mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
