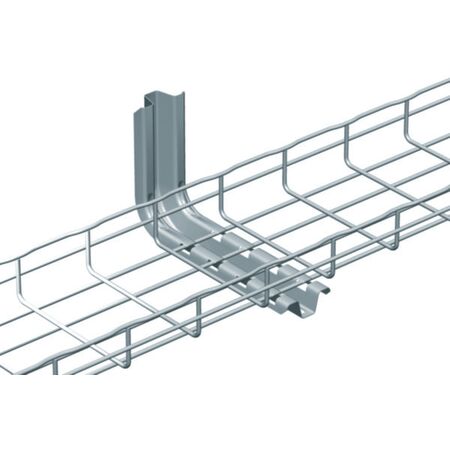

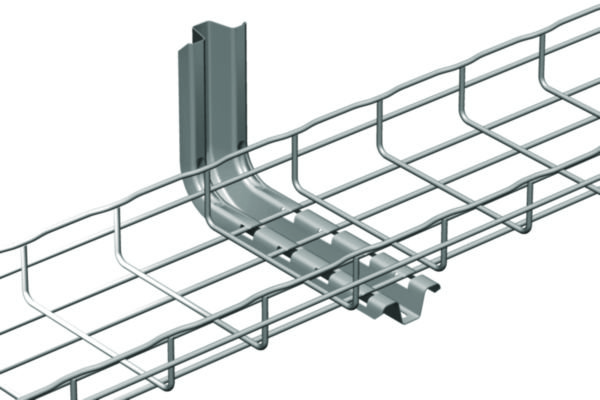

Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm | 850 N Safe Load | Corrosion Resistant | @Each of 1 | by Cablofil
The Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm is designed for robust cable support systems, featuring a safe working load of 850 N and a corrosion-resistant galvanised finish. Ideal for industrial and commercial electrical installations, this arm supports cable trays with widths from 100mm to 200mm, ensuring secure and reliable mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Wire Cable Tray Cantilever Arm | 850 N Safe Load | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556120
Alternatively Known As: Cable Tray Wall Bracket, Cantilever Arm for Cable Tray, Steel Cable Tray Support Arm
Technical Specifications
- Length: 278 mm
- Width: 32 mm
- Height: 170 mm
- Suitable for cable support system width: 100-200 mm
- Angle: 90-90°
- Safe working load: 850 N (IEC 61537)
- Material: Steel
- Surface protection: Continuously galvanised
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 170mm x 278mm x 32mm
- Weight: 0.5 kg
Key Features
- Slot and tab design for easy fixing and installation
- Continuously galvanised steel for corrosion resistance
- Safe working load of 850 N according to IEC 61537
- Suitable for circuit integrity applications
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building standards.
Applications
- Cable support systems in industrial and commercial electrical installations
- Wall mounting for steel wire cable trays
- Suitable for cable tray widths from 100mm to 200mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel construction extends product life and reduces replacement frequency
- Halogen free materials reduce environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Profile Cantilever Arm 200mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
