Cablofil Pre-Galvanised Steel Wire Cable Tray Central Hanger | 2500 N Load Capacity | Corrosion Resistant | @Each of 1 | by Cablofil

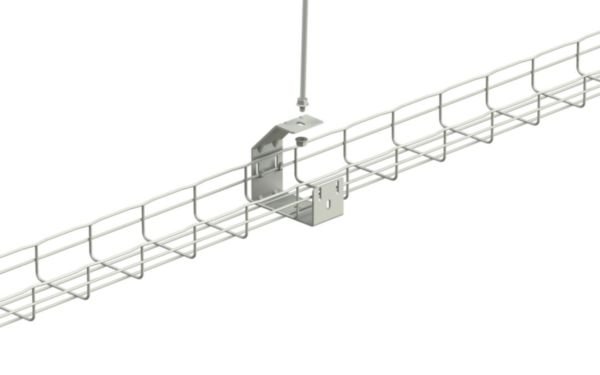

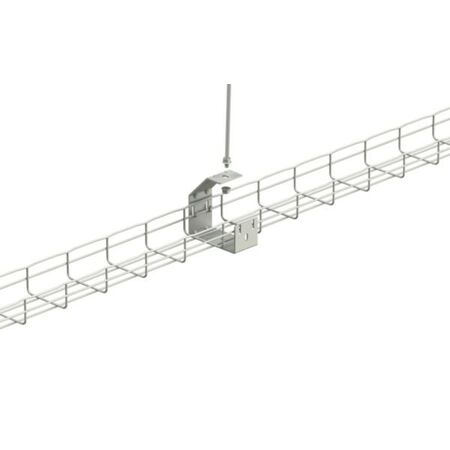

The Cablofil Pre-Galvanised Steel Wire Cable Tray Central Hanger is designed for reliable support of 50mm and 100mm cable trays, boasting a robust load capacity of 2500 N. Ideal for commercial and industrial electrical installations, this hanger features corrosion-resistant pre-galvanised steel for enhanced durability and longevity, ensuring secure mounting in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Steel, continuously galvanised
- Load Bearing Capacity: 2500 N
- Length: 125 mm
- Width: 60 mm
- Height: 133.8 mm
- Diameter: 21 mm
- Suitable for 50mm and 100mm cable tray widths
- Non-adjustable, no hinging
- Not suitable for circuit integrity applications
- Weight: 0.5 kg
Key Features
- Pre-galvanised steel construction for corrosion resistance
- Designed for use with 50mm and 100mm cable tray widths
- Load bearing capacity of 2500 N
- Continuously galvanised surface protection
- Dimensions: Length 125mm, Width 60mm, Height 133.8mm, Diameter 21mm
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable tray systems to ensure secure and compliant mounting.
Applications
- Supports for 50mm and 100mm width steel wire cable trays in electrical installations
- Used in commercial and industrial cable management systems
- Suitable for ceiling mounting to secure cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel enhances durability, reducing the need for frequent replacements and minimizing waste
- Galvanised coating protects against corrosion, extending product life and reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Central Hanger 100mm is available for immediate purchase, ideal for commercial and industrial cable management applications.
