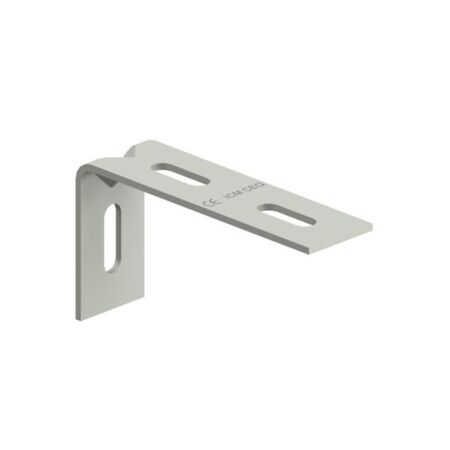

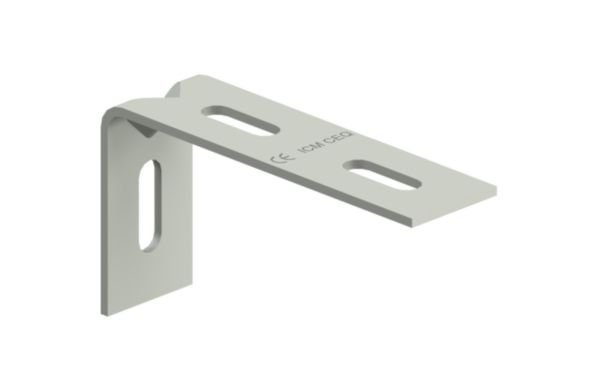

Cablofil Pre-Galvanised Steel Wire Cable Tray Central Hanger Bracket | 120 N Safe Working Load | Halogen Free Material | @Each of 1 | by Cablofil
The Cablofil Pre-Galvanised Steel Wire Cable Tray Central Hanger Bracket is designed for robust cable support in industrial and commercial settings. With a safe working load of 120 N and halogen-free material, it ensures safety and compliance in electrical installations. Its pre-galvanised steel construction provides excellent corrosion resistance, making it ideal for long-lasting performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Wire Cable Tray Central Hanger Bracket | 120 N Safe Working Load | Halogen Free Material | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM557300
Alternatively Known As: Cable Tray Central Hanger Bracket, Steel Wire Cable Tray Support Bracket, Galvanised Cable Tray Bracket
Technical Specifications
- Length: 110 mm
- Width: 30 mm
- Height: 58 mm
- Suitable for cable support system width: 50-50 mm
- Angle: 90°
- Safe working load: 120 N (IEC 61537)
- Material: Steel
- Surface protection: Continuously galvanised
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Dimensions (H x L x W): 58mm x 110mm x 30mm
- Weight: 0.3 kg
Key Features
- Pre-galvanised steel construction for corrosion resistance
- Continuously galvanised surface protection
- Safe working load of 120 N according to IEC 61537
- Halogen free material
- Operating temperature range from -20°C to 120°C
- Angle bracket with 90° angle for central hanger support
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable tray systems to ensure secure and compliant mounting.
Applications
- Supports for steel wire cable trays in electrical installations
- Industrial and commercial cable management systems
- Suitable for cable support systems with 50-50 mm width
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel extends product life reducing replacement frequency
- Halogen free materials reduce environmental and health impact
- Durable construction minimizes waste and supports sustainable cable management
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Central Hanger Bracket CEQ100GS is available for immediate purchase, ideal for industrial and commercial cable management applications.
