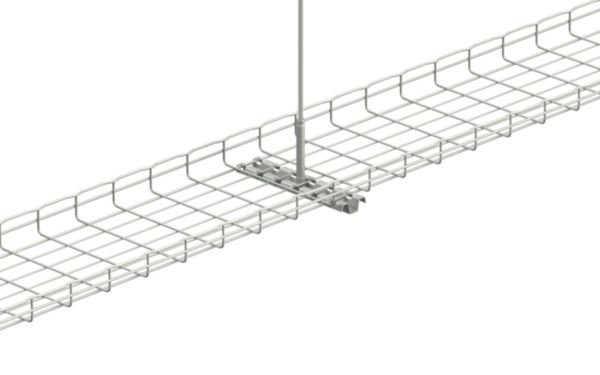

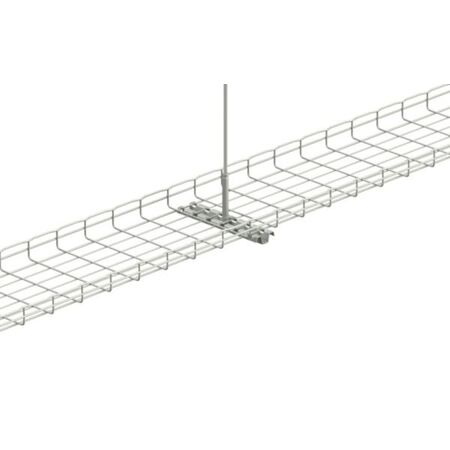

Cablofil Pre-Galvanised Steel Wire Cable Tray Central Rod Hanger | 1400 N Load Capacity | Designed for 200mm Trays | @Each of 1 | by Cablofil
The Cablofil Pre-Galvanised Steel Wire Cable Tray Central Rod Hanger is engineered for robust support in electrical installations, accommodating cable trays 200mm wide and above. With a remarkable load-bearing capacity of 1400 N and a continuously galvanised finish, it ensures durability and corrosion resistance, making it ideal for commercial and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Length: 394 mm
- Width: 61 mm
- Height: 26.3 mm
- Thread size (metric): 12
- Load bearing capacity: 1400 N
- Material: Steel
- Surface protection: Continuously galvanised
- Suitable for tray widths: 200 mm and above
- Hinging: No
- Adjustable: No
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 26mm x 394mm x 61mm
- Weight: 0.5 kg
Key Features
- Pre-galvanised steel construction for corrosion resistance
- Designed for use with cable trays 200mm width and above
- Load bearing capacity of 1400 N
- Continuously galvanised surface protection for durability
- Ceiling bracket model for central rod hanging
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable tray systems to ensure secure and compliant mounting.
Applications
- Supports for steel wire cable trays in electrical installations
- Suitable for cable management in commercial and industrial buildings
- Used in electrical wiring systems requiring secure cable tray suspension
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel extends product life reducing replacement frequency
- Galvanised coating protects against corrosion, minimizing environmental waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific terms.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Central Rod Hanger 400mm is available for immediate purchase, ideal for commercial and industrial cable management applications.
