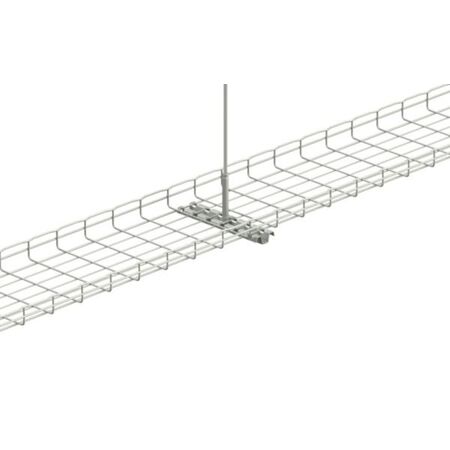

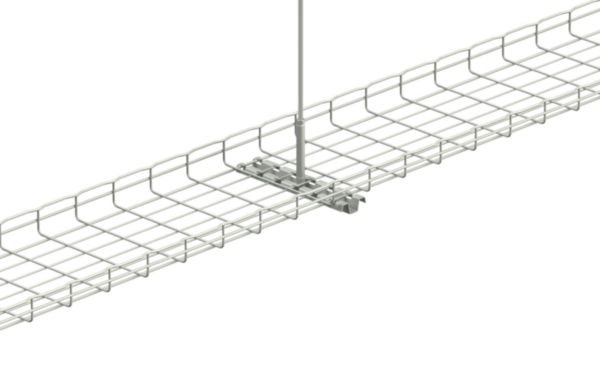

Cablofil Pre-Galvanised Steel Wire Cable Tray Central Rod Hanger | 600mm Width | 1000 N Load Capacity | Zinc Coated | @Each of 1 | by Cablofil
Cablofil Pre-Galvanised Steel Wire Cable Tray Central Rod Hanger is designed for 600mm wide cable trays, offering a robust load-bearing capacity of 1000 N. Ideal for industrial and commercial cable management systems, this ceiling bracket ensures secure suspension of electrical wiring installations, enhancing durability and reducing maintenance needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Length: 594 mm
- Width: 61 mm
- Height: 26.3 mm
- Thread size (metric): 12
- Load bearing capacity: 1000 N
- Material: Steel
- Surface protection: Continuously galvanised
- Colour: Zinc
- Model: Ceiling bracket
- Suitable for tray widths: 200 mm and above
- Hinging: No
- Adjustable: No
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 26.3mm x 594mm x 61mm
- Weight: 0.5 kg
Key Features
- Pre-galvanised steel construction for corrosion resistance
- Designed for use with 600 mm wide cable trays
- Load bearing capacity of 1000 N
- Continuously galvanised surface protection
- Ceiling bracket model for central rod hanging
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable tray systems to ensure secure and compliant mounting.
Applications
- Supports for steel wire cable trays with widths of 200 mm and above
- Industrial and commercial cable management systems
- Electrical wiring installations requiring secure cable tray suspension
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel enhances durability, reducing the need for frequent replacements and minimizing waste
- Galvanised coating protects against corrosion, extending product lifespan and reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Central Rod Hanger 600mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
