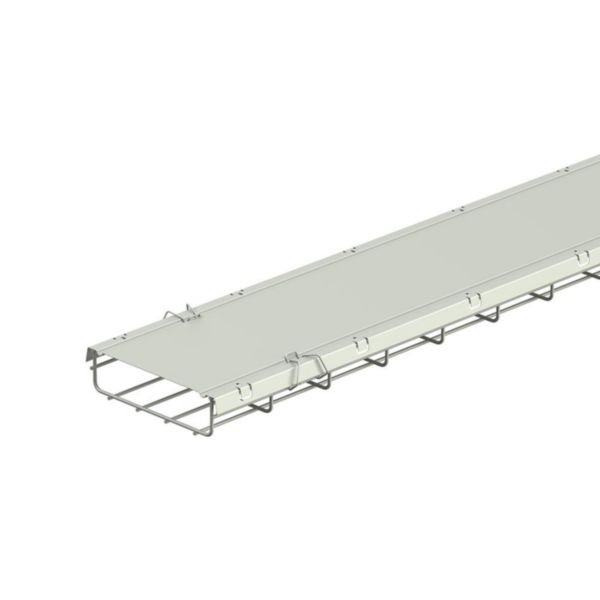

Cablofil Pre-Galvanised Steel Wire Cable Tray Cover | 450mm Width | 2m Length | Halogen Free | @Each of 1 | by Cablofil
The Cablofil Pre-Galvanised Steel Wire Cable Tray Cover is designed for wire mesh trays, featuring a robust 450mm width and 2m length. Made from halogen-free, pre-galvanised steel, it offers excellent corrosion resistance and protects cables from dust and mechanical damage. Ideal for industrial and commercial electrical installations, this cover ensures compliance with safety standards while extending product life through its recyclable material.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cover width: 450 mm
- Length: 2000 mm
- Material thickness: 0.75 mm
- Material: Steel, continuously galvanised
- Suitable for wire mesh trays only
- Type of fastening: Cover clamp
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free
- Dimensions (H x L x W): 30mm x 2000mm x 450mm
- Weight: 3.5 kg
Key Features
- Pre-galvanised steel construction for corrosion resistance
- Continuously galvanised surface protection
- Halogen free material
- Integral tabs for direct fitting or optional clips for fastening
- Operating temperature range from -20°C to 120°C
- Material thickness of 0.75 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems to ensure secure fitting and compliance with safety standards.
Applications
- Suitable for wire mesh cable trays in industrial and commercial electrical installations
- Protects cables from dust and mechanical damage
- Used in data centers, manufacturing plants, and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel is recyclable and extends product life by preventing corrosion
- Halogen free materials reduce environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Cover 450mm x 2m Length is available for immediate purchase, ideal for protecting cables in industrial and commercial wire mesh tray installations.
