Trade Discount 20%

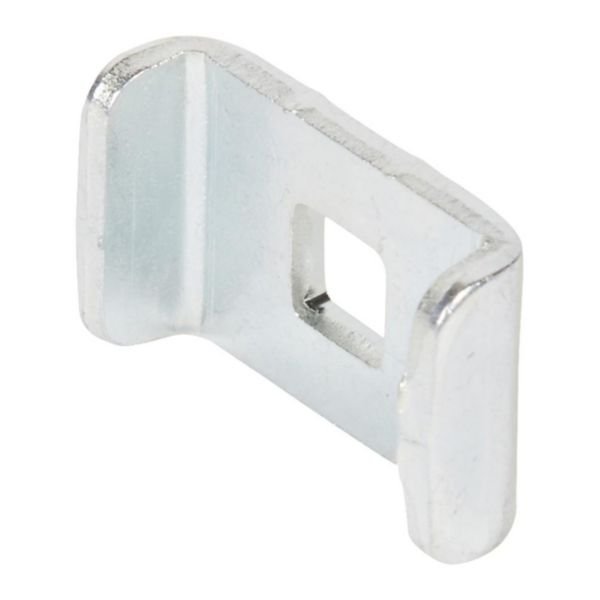

Cablofil Pre-Galvanised Steel Wire Cable Tray Large Clamp Plate | Corrosion Resistant | Thread Size 6 | Bore Diameter 7mm | @Bag of 1 | by Cablofil
The Cablofil Pre-Galvanised Steel Wire Cable Tray Large Clamp Plate is designed for securing steel wire cable trays in electrical installations. Made from corrosion-resistant steel with a continuous galvanised finish, it features a thread size of 6 and a bore diameter of 7mm, ensuring a secure fit. Ideal for industrial and commercial cable management systems, this clamp plate supports flange thicknesses between 3.6-5.9 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Steel
- Surface Protection: Continuously galvanised
- Thread Size (metric): 6
- Suitable Flange Thickness: 3.6-5.9 mm
- Bore Diameter: 7 mm
- Permitted Work Load: 5 N
- Dimensions (H x L x W): 30mm x 120mm x 100mm
- Weight: 1.2 kg
Key Features
- Made from steel with continuous galvanised surface protection for corrosion resistance
- Thread size metric 6 for secure fastening
- Bore diameter of 7 mm
- Permitted work load of 5 N
- Designed for use with Cablofil steel wire cable trays
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable tray systems to ensure secure and compliant fixing.
Applications
- Securing and clamping steel wire cable trays in electrical installations
- Industrial and commercial cable management systems
- Suitable for use with flange thicknesses between 3.6-5.9 mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel provides long-lasting corrosion resistance reducing replacement frequency
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Large Clamp Plate CE30EZ is available for immediate purchase, ideal for industrial and commercial cable management applications.
