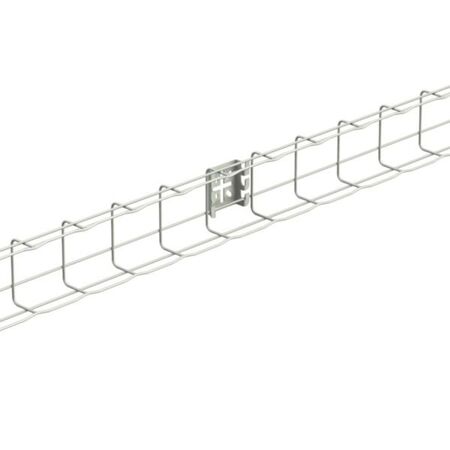

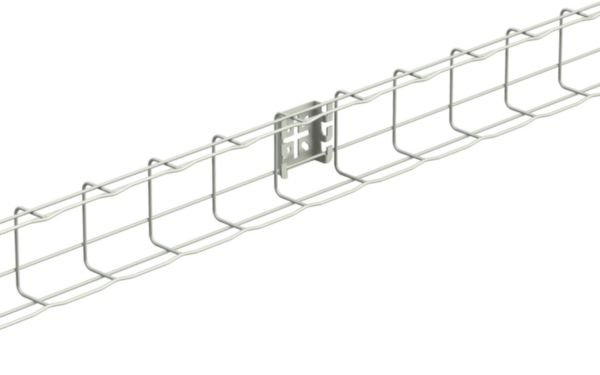

Cablofil Pre-Galvanised Steel Wire Cable Tray Mounting Plate | 1000 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil
The Cablofil Pre-Galvanised Steel Wire Cable Tray Large Universal Mounting Plate is designed for robust cable management, supporting widths from 50 to 100 mm with a safe working load of 1000 N. Ideal for both industrial and commercial applications, this halogen-free plate ensures durability and compliance with safety standards, making it perfect for horizontal or vertical mounting of cable tray runs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Steel, continuously galvanised
- Suitable for cable support system width: 50-100 mm
- Safe working load: 1000 N (per IEC 61537)
- Operating temperature range: -20°C to 120°C
- Storage temperature range: -20°C to 120°C
- Angle: 90-90°
- Halogen free: Yes
- Dimensions (H x L x W): 79mm x 93mm x 19mm
- Weight: 0.5 kg
Key Features
- Suitable for cable support system widths from 50 to 100 mm
- Safe working load of 1000 N according to IEC 61537
- Continuously galvanised steel for corrosion resistance
- Halogen free material
- Operating temperature range from -20°C to 120°C
- 90-90° angle wall bracket design
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with safety standards.
Applications
- Horizontal or vertical mounting of cable tray runs
- Supports cable trays up to 100 mm width
- Industrial and commercial cable management systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel construction extends product life and reduces replacement frequency
- Halogen free materials reduce environmental impact in case of fire
- Supports organized cable management which can improve energy efficiency in installations
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Large Universal Mounting Plate CM50XLGS is available for immediate purchase, ideal for industrial and commercial cable management applications.
