Cablofil Pre-Galvanised Steel Wire Cable Tray Roof Cantilever Arm | 1000 N Load Capacity | Screwable Tray Mounting | @Each of 1 | by Cablofil

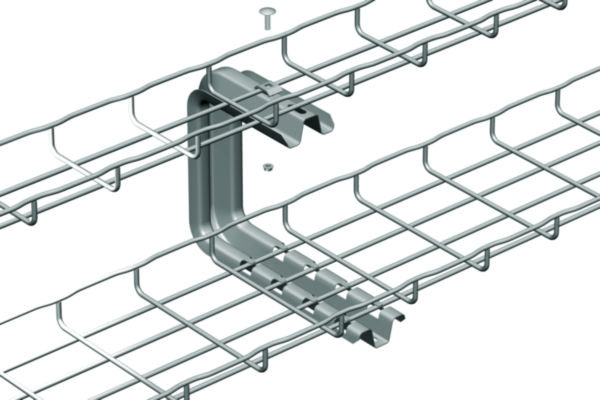

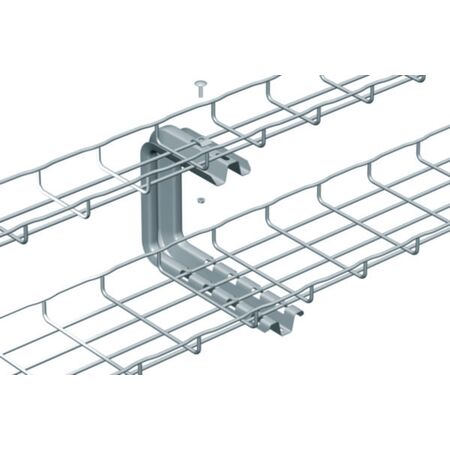

The Cablofil Pre-Galvanised Steel Wire Cable Tray Roof Cantilever Arm is designed for robust cable management in industrial and commercial settings. With a load-bearing capacity of 1000 N and a screwable tray mounting for secure installation, this arm is perfect for supporting wire mesh trays at heights of 100-100 mm. Its pre-galvanised steel construction ensures corrosion resistance, making it a reliable choice for long-term use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Wire Cable Tray Roof Cantilever Arm | 1000 N Load Capacity | Screwable Tray Mounting | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556310
Alternatively Known As: Cable Tray Support Arm, Roof Cantilever Arm, Wire Mesh Tray Support Bracket
Technical Specifications
- Material: Steel, pre-galvanised surface protection
- Load Bearing Capacity: 1000 N
- Suitable for Cable Support System Height: 100-100 mm
- Tray Mounting: Screwable
- Compatible with Wire Mesh Tray: Yes
- Compatible with Cable Ladder: No
- Compatible with Cable Tray: No
- Circuit Integrity: Not suitable
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 1.5 kg
Key Features
- Pre-galvanised steel construction for corrosion resistance
- Slot and tab design for easy fixing and installation
- Suitable for cable support system heights of 100-100 mm
- Screwable tray mounting for secure attachment
- Load bearing capacity of 1000 N
- Compatible with wire mesh trays
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building standards.
Applications
- Supports cable wire mesh trays in industrial and commercial electrical installations
- Used in ceiling and wall mounting for cable management systems
- Ideal for cable support systems requiring robust and corrosion-resistant mounting arms
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel extends product life reducing replacement frequency and waste
- Supports organized cable management which can improve energy efficiency in electrical systems
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Profile Roof Cantilever Arm 150mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
