Cablofil Pre-Galvanised Steel Wire Cable Tray Roof Cantilever Arm | 1200 N Load Capacity | Screwable Mounting | @Each of 1 | by Cablofil

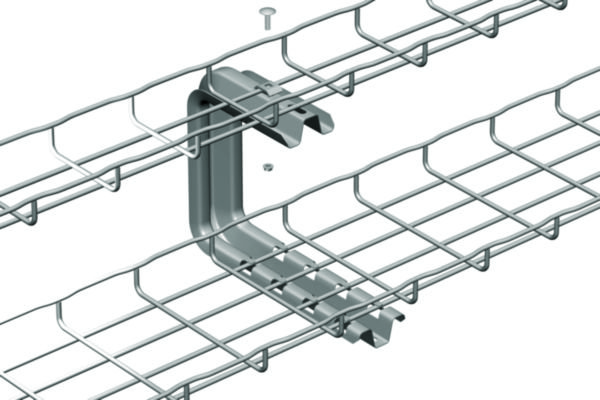

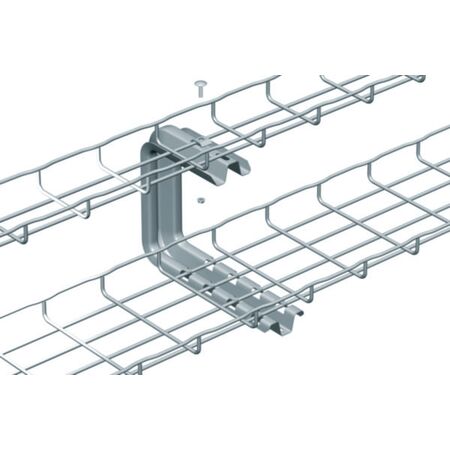

The Cablofil Pre-Galvanised Steel Wire Cable Tray Roof Cantilever Arm is designed for robust cable management in industrial and commercial settings. With a load-bearing capacity of 1200 N and screwable mounting for secure installation, this arm is perfect for supporting wire mesh trays at a height of 100 mm. Its continuously galvanised surface ensures corrosion resistance, making it a durable choice for long-term use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Wire Cable Tray Roof Cantilever Arm | 1200 N Load Capacity | Screwable Mounting | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556300
Alternatively Known As: Cable Tray Support Arm, Roof Cantilever Arm, Wire Mesh Tray Support, Cable Tray Bracket
Technical Specifications
- Material: Steel
- Surface Protection: Continuously galvanised
- Load Bearing Capacity: 1200 N
- Suitable for Cable Support System Height: 100 mm
- Tray Mounting: Screwable
- Suitable for Wire Mesh Tray: Yes
- Suitable for Cable Ladder: No
- Suitable for Cable Tray: No
- Suitable for Circuit Integrity: No
- Dimensions (H x L x W): 50mm x 300mm x 100mm
- Weight: 1.5 kg
Key Features
- Slot and tab design for easy fixing and installation
- Suitable for cable support system height of 100 mm
- Screwable tray mounting for secure attachment
- Load bearing capacity of 1200 N
- Continuously galvanised surface protection for corrosion resistance
- Made from durable steel material
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural standards.
Applications
- Supports cable wire mesh trays in industrial and commercial electrical installations
- Used in ceiling and wall mounting for cable management systems
- Ideal for cable support systems requiring cantilever arm support
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel construction extends product life reducing replacement frequency
- Supports organized cable management reducing material waste and improving system efficiency
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Profile Roof Cantilever Arm 100mm is available for immediate purchase, ideal for industrial and commercial cable management support applications.
