Cablofil Pre-Galvanised Steel Wire Cable Tray Roof Cantilever Arm | 800 N Load Capacity | Corrosion Resistant | @Each of 1 | by Cablofil

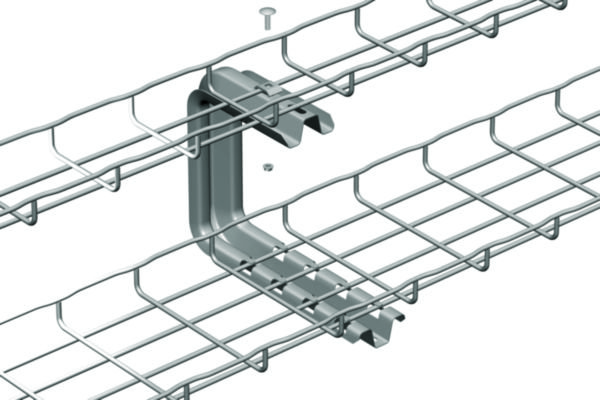

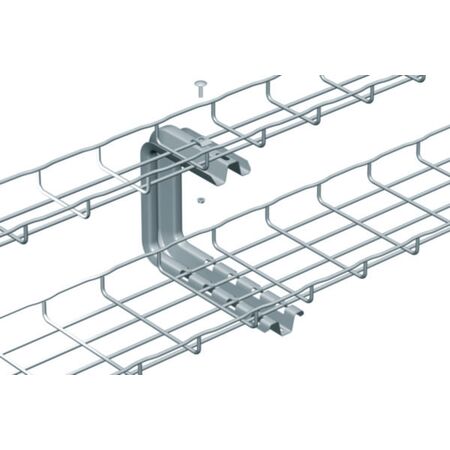

The Cablofil Pre-Galvanised Steel Wire Cable Tray Roof Cantilever Arm is designed for robust cable support in industrial and commercial settings. With a load-bearing capacity of 800 N and a continuously galvanised surface for corrosion resistance, this arm is perfect for secure mounting of wire mesh trays. Ideal for cable management systems, it ensures durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Wire Cable Tray Roof Cantilever Arm | 800 N Load Capacity | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556320
Alternatively Known As: Cable Tray Support Arm, Roof Cantilever Arm, Wire Mesh Tray Bracket, Cable Tray Bracket
Technical Specifications
- Material: Steel
- Surface Protection: Continuously galvanised
- Load Bearing Capacity: 800 N
- Suitable for Cable Support System Height: 100-100 mm
- Tray Mounting: Screwable
- Compatible with Wire Mesh Tray: Yes
- Compatible with Cable Ladder: No
- Compatible with Cable Tray: No
- Suitable for Circuit Integrity: No
- Dimensions (H x L x W): 50mm x 300mm x 200mm
- Weight: 1.2 kg
Key Features
- Slot and tab design for easy fixing and installation
- Continuously galvanised surface protection for corrosion resistance
- Suitable for cable support system heights of 100-100 mm
- Load bearing capacity of 800 N
- Screwable tray mounting for secure attachment
- Compatible with wire mesh trays
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems to ensure secure mounting and compliance with safety standards.
Applications
- Supports for cable wire mesh trays in industrial and commercial electrical installations
- Ceiling and wall mounting for cable management systems
- Used in electrical wiring infrastructure requiring durable cable support
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel construction extends product life and reduces need for replacement
- Supports organized cable management reducing electrical hazards and waste
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Profile Roof Cantilever Arm 200mm is available for immediate purchase, ideal for industrial and commercial cable support applications.
