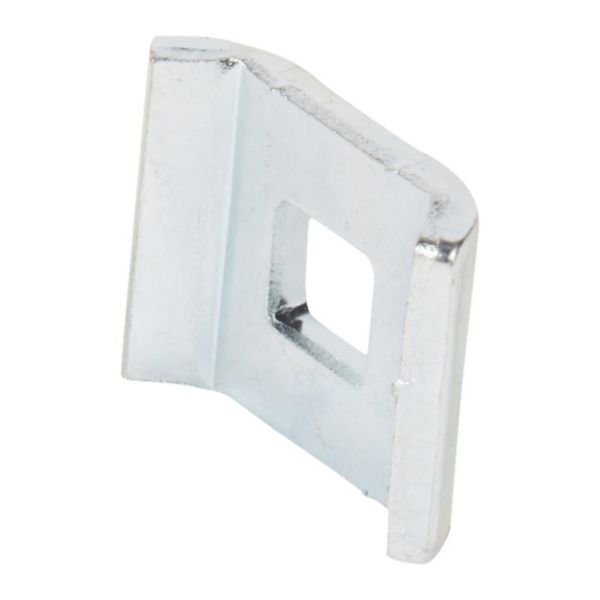

Cablofil Pre-Galvanised Steel Wire Cable Tray Small Clamp Plate | Corrosion Resistant | Suitable for 3.6-5.9mm Flanges | @Bag of 1 | by Cablofil
Cablofil Pre-Galvanised Steel Wire Cable Tray Small Clamp Plate is designed for securing steel wire cable trays in electrical installations. Made from corrosion-resistant steel with a continuous galvanised surface, it accommodates flange thicknesses between 3.6 mm and 5.9 mm, ensuring reliable support in industrial and commercial cable management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Wire Cable Tray Small Clamp Plate | Corrosion Resistant | Suitable for 3.6-5.9mm Flanges | @Bag of 1 | by Cablofil
Brand: Cablofil
SKU: CM558011
Alternatively Known As: Steel Wire Cable Tray Clamp Plate, Cable Tray Fixing Clamp, Pre-Galvanised Cable Tray Clamp
Technical Specifications
- Material: Steel
- Surface Protection: Continuously galvanised
- Thread Size (metric): 6
- Suitable Flange Thickness: 3.6-5.9 mm
- Bore Diameter: 7 mm
- Permitted Work Load: 5 N
- Model: Continuous
- Dimensions (H x L x W): 20mm x 70mm x 50mm
- Weight: 0.5 kg
Key Features
- Made from steel with continuous galvanised surface protection for corrosion resistance
- Suitable for flange thickness between 3.6 mm and 5.9 mm
- Thread size metric 6 with bore diameter of 7 mm
- Permitted work load of 5 N
- Pack of 50 counter clamps
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable tray systems to ensure secure and compliant fixing.
Applications
- Securing and fixing steel wire cable trays in electrical installations
- Industrial and commercial cable management systems
- Electrical wiring support in construction and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel provides long-lasting corrosion resistance, reducing the need for frequent replacements and minimizing waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies. Please refer to Cablofil or Legrand for detailed warranty terms.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Small Clamp Plate CE25EZ is available for immediate purchase, ideal for industrial and commercial cable management applications.
