Cablofil Pre-Galvanised Steel Wire Cable Tray Support Cradle | 50mm Tray Width | 120N Load Capacity | Screwable Mounting | @EA of 1 | by Cablofil

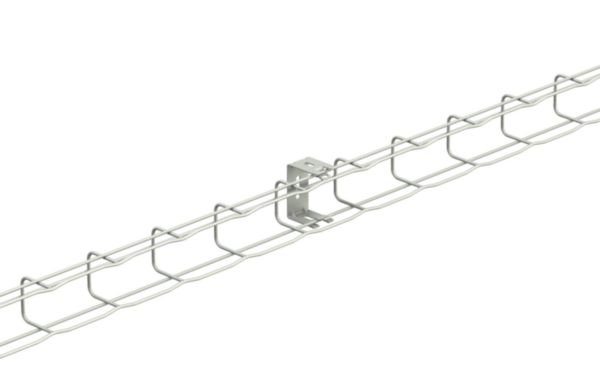

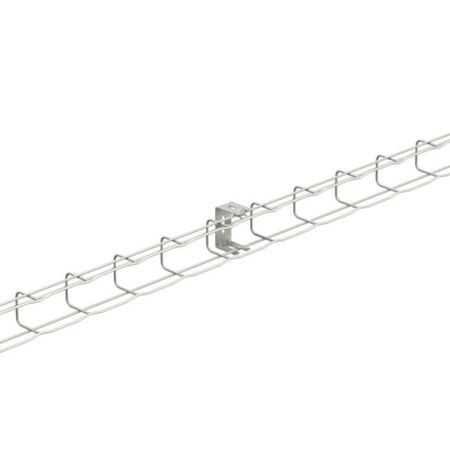

The Cablofil Pre-Galvanised Steel Wire Cable Tray Support Cradle is designed for 50mm wide wire mesh trays, offering a robust load-bearing capacity of 120N. Ideal for commercial and industrial cable management, this cradle features a screwable mounting design for secure installation, ensuring compliance with safety standards and enhancing the longevity of your cable support systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Wire Cable Tray Support Cradle | 50mm Tray Width | 120N Load Capacity | Screwable Mounting | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM586040
Alternatively Known As: Cable Tray Support Bracket, Wire Mesh Tray Support Cradle, Galvanised Cable Tray Bracket
Technical Specifications
- Material: Steel
- Surface Protection: Continuously galvanised
- Load Bearing Capacity: 120 N
- Tray Width Compatibility: 50 mm
- Tray Depth Compatibility: 30 mm and 54 mm
- Tray Mounting: Screwable
- Suitable for Wire Mesh Tray: Yes
- Suitable for Cable Ladder: No
- Suitable for Cable Tray: No
- Circuit Integrity: Not suitable
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Designed for 50 mm tray width and compatible with 30 mm and 54 mm tray depths
- Face out bracket (C-bracket) design
- Screwable tray mounting for secure installation
- Load bearing capacity of 120 N
- Continuously galvanised steel for corrosion resistance
- Suitable for wire mesh trays but not for cable ladders or cable trays
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with safety standards.
Applications
- Supports for 50 mm wide wire mesh cable trays
- Suitable for cable support systems with heights of 50 mm
- Used in electrical wiring management in commercial and industrial buildings
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel construction extends product life and reduces need for replacement
- Supports organized cable management which can improve energy efficiency in electrical systems
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Support Cradle 50mm is available for immediate purchase, ideal for commercial and industrial cable management applications.
