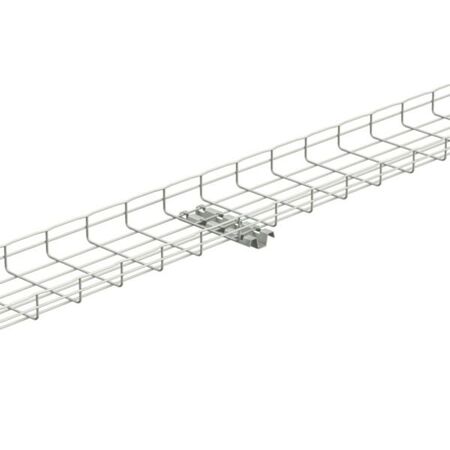

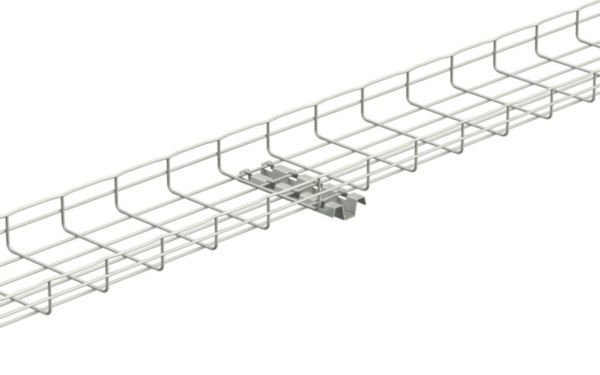

Cablofil Pre-Galvanised Steel Wire Cable Tray Support Rail | 3m Length | 1 kN Load Capacity | Halogen Free | @EA of 1 | by Cablofil
The Cablofil Pre-Galvanised Steel Wire Cable Tray Support Rail is designed for effective cable management in industrial and commercial settings. With a robust 1 kN load capacity and a corrosion-resistant pre-galvanised steel construction, it ensures durability and reliability. Ideal for floor, wall, or trapeze mounting, this support rail is halogen-free, making it a safe choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Wire Cable Tray Support Rail | 3m Length | 1 kN Load Capacity | Halogen Free | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM013030
Alternatively Known As: Steel Cable Tray Support Rail, Galvanised Cable Tray Rail, Wire Mesh Cable Tray Support
Technical Specifications
- Length: 2994 mm
- Width: 68 mm
- Height: 25 mm
- Slit width: 25 mm
- Material thickness: 1.5 mm
- Profile shape: S-profile
- Type of perforation: Back perforated
- Hole width: 8.5 mm
- Load bearing capacity: 1 kN
- Material: Steel
- Surface protection: Continuously galvanised
- Operating temperature: -20 to 120 °C
- Storage temperature: -20 to 120 °C
- Halogen free: Yes
- Dimensions (H x L x W): 25mm x 2994mm x 68mm
- Weight: 3.5 kg
Key Features
- Pre-galvanised steel construction for corrosion resistance
- S-profile shape with back perforation for easy cable attachment
- Load bearing capacity of 1 kN
- Suitable for use in temperatures from -20°C to 120°C
- Halogen free material
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural standards.
Applications
- Floor mounting for cable management
- Wall mounting for cable support
- Trapeze mounting in industrial and commercial settings
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel surface extends product life reducing replacement frequency
- Halogen free materials reduce environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific terms.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Support Rail 3m is available for immediate purchase, ideal for industrial, commercial, and infrastructure cable management applications.
