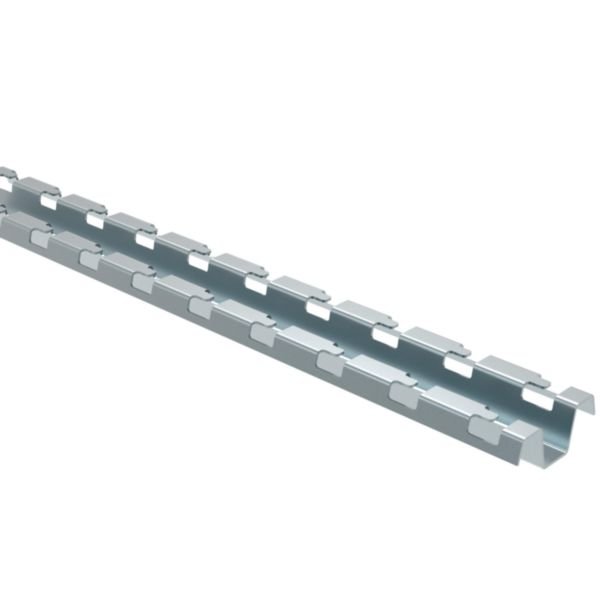

Cablofil Pre-Galvanised Steel Wire Cable Tray Support Rail | Corrosion Resistant | S-Profile Shape | 1 kN Load Capacity | @EA of 1 | by Cablofil
The Cablofil Pre-Galvanised Steel Wire Cable Tray Support Rail is designed for robust cable management in industrial and commercial settings. With a corrosion-resistant pre-galvanised steel construction and a load-bearing capacity of 1 kN, this support rail ensures durability and reliability. Its S-profile shape and back perforation allow for easy installation, making it ideal for environments that require dependable cable support.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Pre-Galvanised Steel Wire Cable Tray Support Rail | Corrosion Resistant | S-Profile Shape | 1 kN Load Capacity | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM013700
Alternatively Known As: Cable Tray Support Rail, Steel Cable Tray Support, Galvanised Cable Tray Rail, Wire Mesh Cable Tray Support
Technical Specifications
- Length: 694 mm
- Width: 67 mm
- Height: 26.3 mm
- Material thickness: 1.5 mm
- Profile shape: S-profile
- Type of perforation: Back perforated
- Hole width: 8.5 mm
- Load bearing capacity: 1 kN
- Area moment of inertia Iy: 7.36 cm4
- Area moment of inertia Iz: 1.586 cm4
- Moment of resistance Wy: 2.171 cm³
- Moment of resistance Wz: 1.038 cm³
- Material: Steel
- Surface protection: Continuously galvanised
- Operating temperature: -20 to 120 °C
- Halogen free: Yes
- Dimensions (H x L x W): 26.3mm x 694mm x 67mm
- Weight: 0.79 kg
Key Features
- Pre-galvanised steel construction for corrosion resistance
- S-profile shape with back perforation for easy mounting
- Load bearing capacity of 1 kN
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems to ensure compliance with safety and structural standards.
Applications
- Supports for steel wire cable trays in electrical installations
- Industrial and commercial cable management systems
- Suitable for use in environments requiring durable cable support
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Pre-galvanised steel extends product life reducing replacement frequency
- Halogen free materials reduce environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Pre-Galvanised Steel Wire Cable Tray Support Rail 700mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
