Cablofil Zinc Coated Clamp Plate Kit | Large & Small Plates | M6 Coach Bolt & Nut | @Bag of 1 | by Cablofil

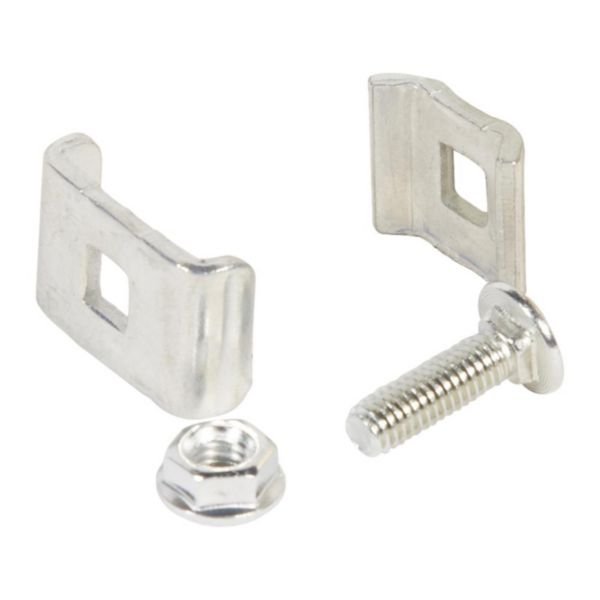

The Cablofil Zinc Coated Clamp Plate Kit includes large and small clamp plates, an M6 nut, and a 20mm coach bolt, designed for secure wire mesh tray installations. Ideal for cable management in industrial and commercial settings, this kit is made from halogen-free materials and features a zinc coating for enhanced corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Zinc Coated Clamp Plate Kit | Large & Small Plates | M6 Coach Bolt & Nut | @Bag of 1 | by Cablofil
Brand: Cablofil
SKU: CM558087
Alternatively Known As: Wire Mesh Tray Clamp Kit, Cable Tray Fixing Kit, Zinc Coated Clamp Plate Set
Technical Specifications
- Material: Steel with zinc coating
- Suitable for wire mesh tray filament diameter: 3.9-5.9 mm
- Suitable cable support system width: 50-600 mm
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Type of connection: Screw connector
- Not suitable for cable ladder or cable tray
- Not suitable for circuit integrity applications
- Dimensions (H x L x W): 23.5mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Kit includes large clamp plate, small clamp plate, M6 nut, and M6 x 20mm coach bolt
- Zinc coated for corrosion resistance
- Suitable for wire mesh trays with filament diameter 3.9-5.9 mm
- Compatible with cable support systems width 50-600 mm
- Halogen free material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems to ensure secure and compliant fixing.
Applications
- Suitable for wire mesh tray installations
- Used in cable management systems for securing wire mesh trays
- Ideal for electrical and data cable routing in industrial and commercial settings
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc coating provides long-lasting corrosion resistance, reducing replacement frequency and waste
- Halogen free materials contribute to safer environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Cablofil warranty terms for details.
Available Now
The Cablofil Zinc Coated Large and Small Clamp Plate Fixing Kit with M6 x 20mm Coach Bolt and Nut is available for immediate purchase. Ideal for wire mesh tray cable management in industrial and commercial applications.
