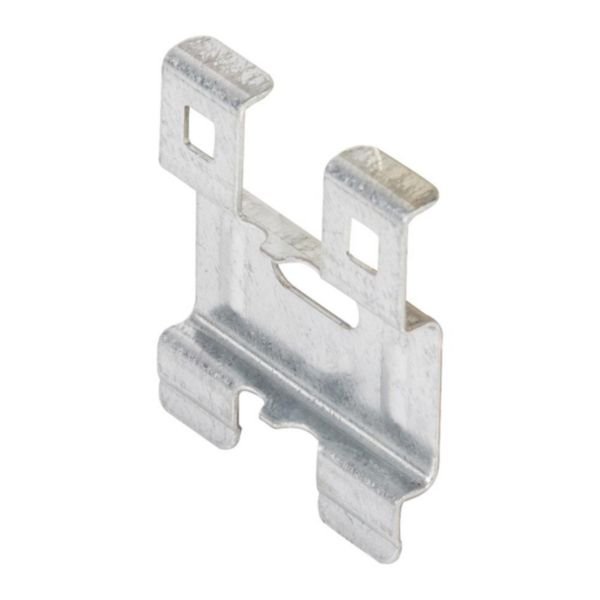

Cablofil Zinc Coated Steel Wire Cable Tray Base Coupler | Screwless Connector | Hinged Joint Flexibility | Corrosion Resistant | @Each of 1 | by Cablofil
The Cablofil Zinc Coated Steel Wire Cable Tray Base Coupler is designed for easy installation with its screwless connector and hinged joint flexibility. Ideal for wire mesh cable trays, it supports widths from 100 to 600 mm and heights of 25 mm, making it perfect for industrial and commercial cable management systems. With a corrosion-resistant zinc coating and halogen-free materials, this coupler ensures durability and environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Zinc Coated Steel Wire Cable Tray Base Coupler | Screwless Connector | Hinged Joint Flexibility | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM558417
Alternatively Known As: Cable Tray Base Joiner, Wire Mesh Tray Coupler, Cable Tray Connector
Technical Specifications
- Material: Zinc coated steel
- Suitable for wire mesh trays only, not for cable ladders or trays
- Suitable cable support system width: 100-600 mm
- Suitable cable support system height: 25 mm
- Hinged joint horizontal: Yes
- Hinged joint vertical: No
- Type of connection: Screwless connector
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Dimensions (H x L x W): 25mm x 55mm x 55mm
- Weight: 0.2 kg
Key Features
- Screwless connector for easy installation
- Hinged joint horizontal for flexibility
- Zinc coated steel for corrosion resistance
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure secure and compliant assembly.
Applications
- Used as a joiner for the bottom of wire mesh cable trays
- Can be used as a luminaire support
- Suitable for wire mesh trays with widths from 100 to 600 mm and height 25 mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc coating extends product life reducing waste
- Halogen free materials reduce environmental impact during disposal
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific terms.
Available Now
The Cablofil Zinc Coated Steel Wire Cable Tray Base Coupler is available for immediate purchase, ideal for industrial and commercial cable management systems.
