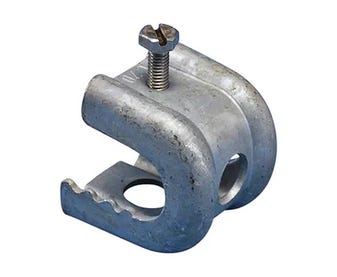

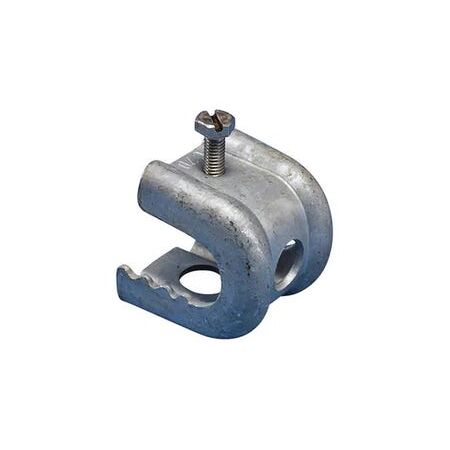

Caddy Beam Clamp SS for 30-44mm Flange | 304 Stainless Steel | 112 kg Load Rating | Box of 50 by Cabac
The Cabac Caddy Beam Clamp SS 304 Grade is designed to securely fasten to flanges 30-44mm thick, offering robust support for cables, conduits, and pipes. Sold in a box of 50, it features versatile mounting holes and a 112 kg load rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy Beam Clamp SS to suit 30-44mm flange (box of 50)
Brand: Cabac
SKU: C45-2
Alternatively Known As: Stainless Steel Beam Clamp, Caddy Clamp SS, Structural Beam Clamp, 304 Stainless Steel Clamp
Technical Specifications
- Material: 304 grade stainless steel (EN 1.4301)
- Flange thickness compatibility: 30-44mm
- Hole size: 14mm
- Screw diameter: 8mm
- Screw length: 30mm
- Load rating: 112 kg
- Box quantity: 50 pieces
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 10 kg
Key Features
- Made from 304 grade stainless steel (EN 1.4301) for corrosion resistance
- Two mounting holes offset by 90 degrees for versatile mounting options
- Load rating of 112 kg per clamp
- Compatible with cable, conduit, pipe clamps, or square washers for multi-function use
- Sold in a box of 50 for bulk applications
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural fastening to ensure safety and compliance.
Applications
- Structural support for beams with flange thickness 30-44mm
- Use with cable, conduit, or pipe clamps
- Suitable for industrial, commercial, and construction fastening needs
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac Caddy Beam Clamp SS 304 Grade for 30-44mm flange is available now for immediate purchase. Ideal for structural fastening in construction and industrial applications.
