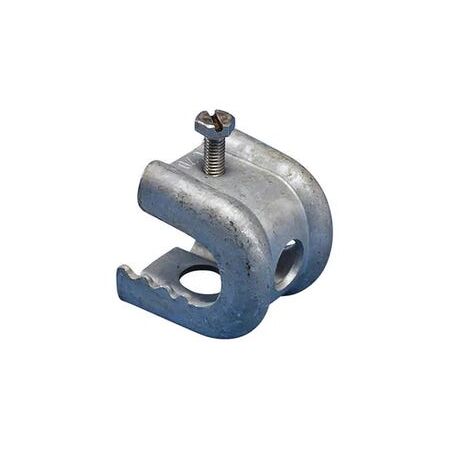

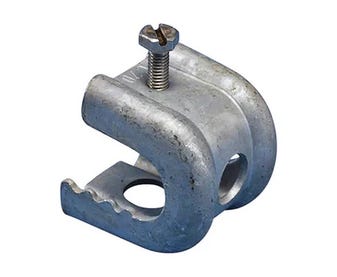

Caddy Beam Clamp Galvanized for 17-30mm Flange | 112 kg Load Rating | Hot Dip Galvanized Steel | Versatile Mounting by Cabac
The Cabac Caddy Beam Clamp is a durable hot dip galvanized steel clamp designed to fit flanges 17-30mm thick, providing secure mounting for cables, conduits, and pipes. Sold in a box of 100, it features versatile mounting holes and a 112 kg load rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy Beam Clamp Galvanized to suit 17-30mm flange (box of 100)
Brand: Cabac
SKU: C30-3
Alternatively Known As: Beam Clamp, Galvanized Beam Clamp, Structural Beam Clamp, Caddy Clamp, Flange Clamp
Technical Specifications
- Material: Hot dip galvanized steel
- Flange thickness compatibility: 17-30mm
- Hole size: 14mm
- Screw diameter: 8mm
- Screw length: 30mm
- Load rating: 112 kg
- Box quantity: 100 pieces
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 10 kg
Key Features
- Hot dip galvanized steel for corrosion resistance
- Two mounting holes offset by 90 degrees for versatile mounting
- Load rating of 112 kg per clamp
- Compatible with cable, conduit, and pipe clamps or square washers
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural fastening to ensure safety and compliance with load ratings.
Applications
- Structural support for beams with flange thickness 17-30mm
- Use with cable, conduit, or pipe clamps
- Suitable for construction, electrical, and mechanical installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot dip galvanizing provides long-lasting corrosion protection, reducing the need for frequent replacements and waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Caddy Beam Clamp Galvanized for 17-30mm flange is available now for immediate purchase. Ideal for structural attachment and support applications in construction and electrical installations.
