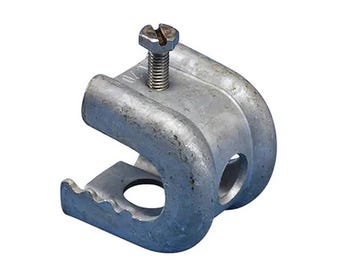

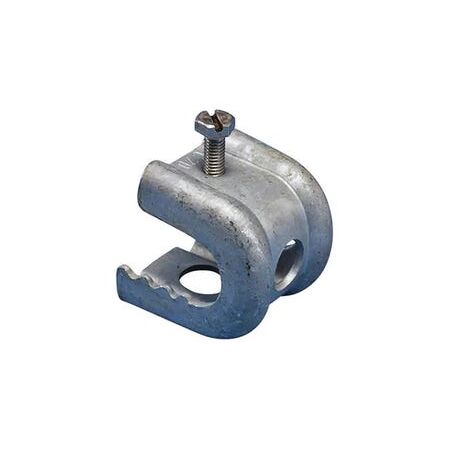

Caddy Beam Clamp Galvanized for 30-44mm Flange | 112 kg Load Rating | Flexible Mounting | Hot Dip Galvanized Steel by Cabac
The Cabac Caddy Beam Clamp is a durable hot dip galvanized steel clamp designed to fit flanges 30-44mm thick, sold in a box of 50. It features flexible mounting options and a 112 kg load rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy Beam Clamp Galvanized to suit 30-44mm flange (box of 50)
Brand: Cabac
SKU: C45-3
Alternatively Known As: Beam Clamp, Galvanized Beam Clamp, Structural Beam Clamp, Caddy Clamp, Flange Clamp
Technical Specifications
- Material: Hot dip galvanized steel
- Flange thickness compatibility: 30-44mm
- Hole size: 14mm
- Screw diameter: 8mm
- Screw length: 30mm
- Load rating: 112 kg
- Box quantity: 50 pieces
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 10 kg
Key Features
- Hot dip galvanized steel for corrosion resistance
- Two mounting holes offset by 90 degrees for flexible mounting
- Load rating of 112 kg
- Suitable for flange thickness 30-44mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural fastening to ensure safety and compliance with load ratings.
Applications
- Structural support for beams with flange thickness 30-44mm
- Use with cable, conduit, or pipe clamps
- Suitable for construction, electrical, and mechanical fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot dip galvanizing provides long-lasting corrosion protection, reducing the need for frequent replacements and waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms.
Available Now
The Cabac Caddy Beam Clamp Galvanized for 30-44mm flange is available now for immediate purchase. Ideal for structural fastening and support in construction and electrical installations.
