Caddy Beam Clamp Galvanized | 4-20mm Flange Compatibility | 112kg Load Rating | Box of 100 by Cabac

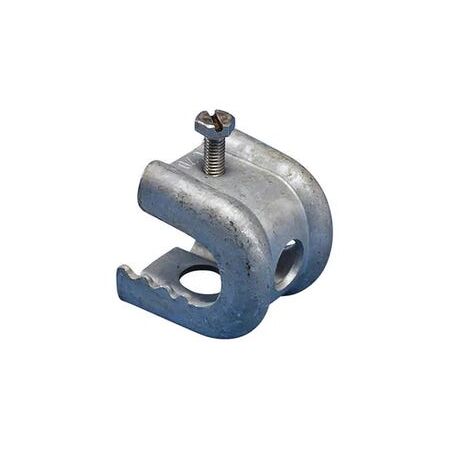

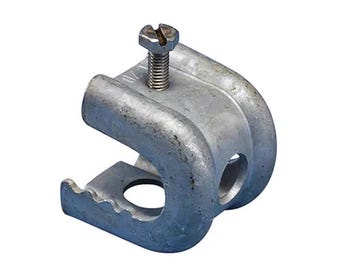

The Cabac Caddy Beam Clamp is a durable hot dip galvanized steel clamp designed to fit flanges from 4 to 20mm thick. Sold in a box of 100, it features versatile mounting holes and supports loads up to 112 kg.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy Beam Clamp Galvanized to suit 4-20mm flange (box of 100)
Brand: Cabac
SKU: C20-3
Alternatively Known As: Beam Clamp, Structural Beam Clamp, Galvanized Beam Clamp, Caddy Clamp, Flange Clamp
Technical Specifications
- Material: Hot dip galvanized steel
- Flange thickness compatibility: 4-20mm
- Hole size: 14mm
- Screw diameter: 6mm
- Screw length: 25mm
- Load rating: 112 kg
- Box quantity: 100 pieces
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 10 kg
Key Features
- Hot dip galvanized steel for corrosion resistance
- Two mounting holes offset by 90 degrees for versatile mounting
- Load rating of 112 kg per clamp
- Compatible with cable, conduit, and pipe clamps or square washers
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural fastening to ensure safety and compliance with load ratings.
Applications
- Structural support for beams with flange thickness 4-20mm
- Use with cable, conduit, or pipe clamps
- Suitable for construction, industrial, and electrical installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot dip galvanizing provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms.
Available Now
The Cabac Caddy Beam Clamp Galvanized for 4-20mm flange is available now for immediate purchase. Ideal for structural and electrical fastening applications.
