Caddy Beam Clamp Paint Protector | Stainless Steel M6 | Corrosion Protection | Reduces Load Rating | @Each of 1 | by Cabac

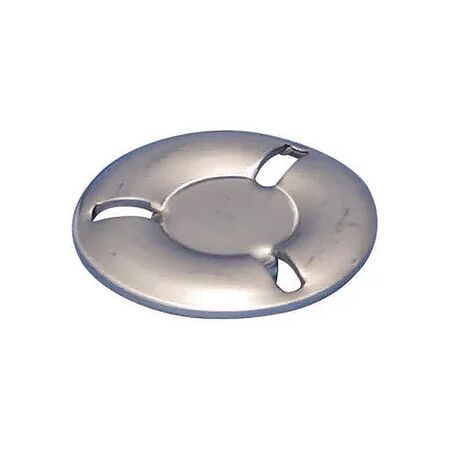

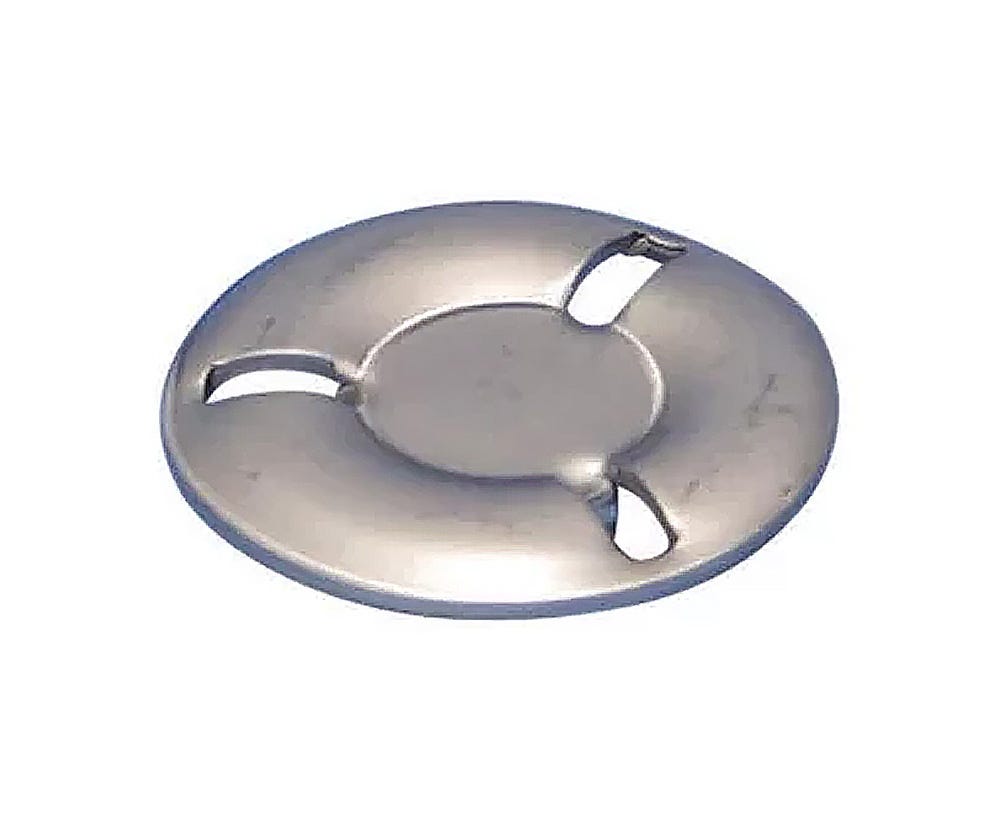

The Caddy Beam Clamp Paint Protector is designed to safeguard beam clamp flanges from corrosion, ensuring the protective coating remains intact. Made from durable stainless steel, this M6 protector reduces the load rating of the beam clamp by 20% and is essential for structural attachments in construction and industrial settings. Ideal for environments where corrosion prevention is critical, it extends the lifespan of structural components.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy Beam Clamp Paint Protector | Stainless Steel M6 | Corrosion Protection | Reduces Load Rating | @Each of 1 | by Cabac
Brand: Cabac
SKU: SPP6-2
Alternatively Known As: Beam Clamp Paint Protector, Beam Clamp Flange Protector, Corrosion Protection for Beam Clamps
Technical Specifications
- Material: Stainless Steel
- Thread Size: M6
- Function: Protects beam clamp flange coating from damage
- Effect on Load Rating: Reduces beam clamp load rating by 20%
- Flange Thickness Reduction: Reduces maximum flange thickness by 3mm
- Dimensions (H x L x W): 20mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Protects flange from corrosion by preventing damage to protective coating
- Reduces load rating of beam clamp by 20%
- Reduces maximum flange thickness of clamp by 3mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural attachment hardware to ensure proper protection and load management.
Applications
- Structural attachments in construction and building projects
- Protection of beam clamp flanges in industrial and commercial settings
- Use in environments where corrosion prevention is critical
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Extends lifespan of structural components by preventing corrosion
- Reduces need for frequent replacements and maintenance, lowering material waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The Cabac Caddy Beam Clamp Paint Protector Stainless Steel M6 is available for immediate purchase, ideal for construction and structural protection applications.
