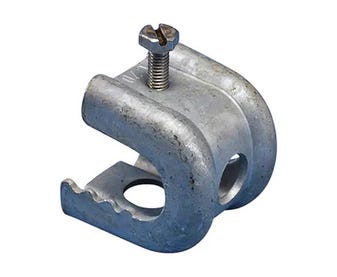

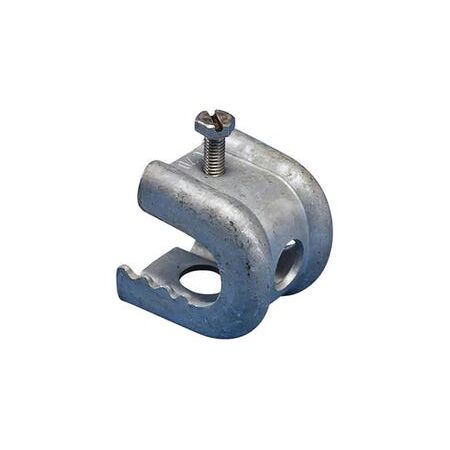

Caddy Beam Clamp SS for 17-30mm Flange | 304 Grade Stainless Steel | 112 kg Load Rating | Box of 100 by Cabac

BRAND: CABAC
SKU: C30-2
$2,526.70 List price: $3,058.20
+
The Cabac Caddy Beam Clamp SS 304 Grade is designed for secure attachment to flanges 17-30mm thick, offering robust support for cables, conduits, and pipes. Sold in a box of 100, it features versatile mounting holes and a 112 kg load rating.

Product Name/Title: Caddy Beam Clamp SS to suit 17-30mm flange (box of 100)

Brand: Cabac

SKU: C30-2

Alternatively Known As: Stainless Steel Beam Clamp, Caddy Clamp SS, Structural Beam Clamp, Flange Clamp 17-30mm

Technical Specifications
  • Material: 304 grade Stainless Steel (EN 1.4301)
  • Flange thickness compatibility: 17-30mm
  • Hole size: 14mm
  • Screw diameter: 8mm
  • Screw length: 30mm
  • Load rating: 112 kg
  • Box quantity: 100 pieces
  • Dimensions (H x L x W): 30mm x 100mm x 50mm
  • Weight: 15 kg
Key Features
  • Made from 304 grade stainless steel (EN 1.4301) for corrosion resistance
  • Fits flange thickness from 17 to 30mm
  • Two 14mm mounting holes offset by 90 degrees for versatile mounting
  • Load rating of 112 kg
  • Sold in a box of 100 pieces
Professional Installation Requirements
  • Installation should be performed by qualified personnel to ensure secure and compliant mounting.
Applications
  • Structural support for beams with flange thickness 17-30mm
  • Use with cable, conduit, or pipe clamps
  • Suitable for construction, industrial, and electrical installations
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable stainless steel construction reduces need for frequent replacements
  • Corrosion resistance extends product life, minimizing waste
Warranty Information

Standard manufacturer warranty against defects applies.

Available Now

The Cabac Caddy Beam Clamp SS 304 Grade for 17-30mm flange is available now for immediate purchase. Ideal for structural and electrical support applications.
