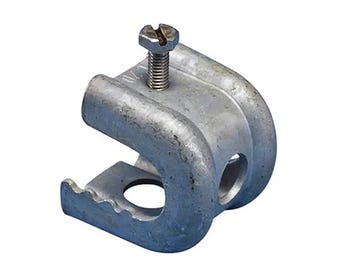

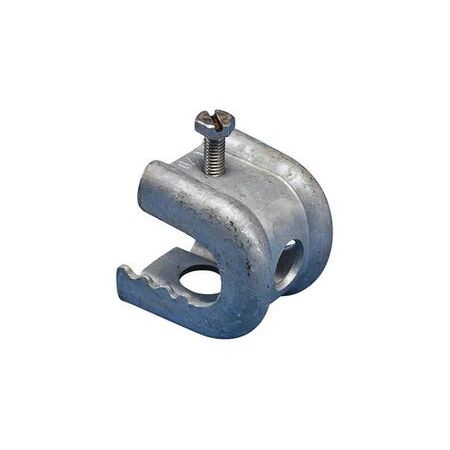

Caddy Beam Clamp SS for 17-30mm Flange | 304 Grade Stainless Steel | 112kg Load Rating | Versatile Mounting by Cabac
The Cabac Caddy Beam Clamp SS 304 Grade is designed for secure fastening on flanges 17-30mm thick, featuring stainless steel construction and versatile mounting options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy Beam Clamp SS to suit 17-30mm flange (sold each)
Brand: Cabac
SKU: C30-2-EA
Alternatively Known As: Stainless Steel Beam Clamp, Caddy Clamp SS, Structural Beam Clamp, Flange Clamp 17-30mm
Technical Specifications
- Material: 304 grade Stainless Steel (EN 1.4301)
- Flange thickness compatibility: 17-30mm
- Hole size: 14mm
- Screw diameter: 8mm
- Screw length: 30mm
- Load rating: 112 kg
- Dimensions (H x L x W): 40mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- Made from 304 grade stainless steel (EN 1.4301) for corrosion resistance
- Fits flange thickness from 17mm to 30mm
- Two 14mm mounting holes offset by 90 degrees for versatile installation
- Load rating of 112 kg
- Sold individually
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural fastening to ensure safety and compliance.
Applications
- Structural support for beams with flange thickness 17-30mm
- Use with cable, conduit, or pipe clamps
- Suitable for industrial, commercial, and construction fastening needs
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac Caddy Beam Clamp SS 304 Grade for 17-30mm flange is available now for immediate purchase. Ideal for structural fastening and support applications.
