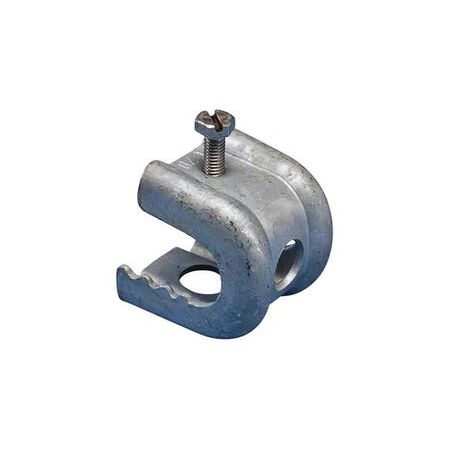

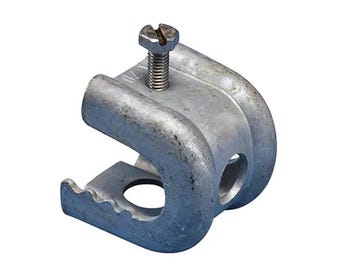

Caddy Beam Clamp SS for 4-20mm Flange | 304 Stainless Steel | 112 kg Load Rating | Box of 100 by Cabac
The Cabac Caddy Beam Clamp SS 304 Grade is designed for secure fastening on flanges 4-20mm thick, featuring dual mounting holes and a 112 kg load rating. Sold in boxes of 100 for efficient structural support applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy Beam Clamp SS to suit 4-20mm flange (box of 100)
Brand: Cabac
SKU: C20-2
Alternatively Known As: Stainless Steel Beam Clamp, Caddy Clamp, Structural Beam Fastener, 304 SS Beam Clamp
Technical Specifications
- Material: 304 grade Stainless Steel (EN 1.4301)
- Flange thickness compatibility: 4-20mm
- Hole size: 14mm
- Screw diameter: 6mm
- Screw length: 25mm
- Load rating: 112 kg
- Box quantity: 100 pieces
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 5 kg
Key Features
- Made from 304 grade stainless steel (EN 1.4301) for corrosion resistance
- Two mounting holes offset by 90 degrees for versatile mounting options
- Load rating of 112 kg per clamp
- Compatible with cable, conduit, pipe clamps, or square washers for multi-function use
- Sold in a box of 100 for bulk applications
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural fastening to ensure safety and compliance with load ratings.
Applications
- Structural support for beams with flange thickness 4-20mm
- Use with cable, conduit, or pipe clamps
- Suitable for industrial, commercial, and construction fastening needs
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- 304 stainless steel construction offers long service life reducing replacement waste
- Corrosion resistance minimizes environmental impact from rust and degradation
Warranty Information
Standard manufacturer warranty against defects applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Caddy Beam Clamp SS 304 Grade for 4-20mm flange is available now for immediate purchase. Ideal for structural fastening in construction and industrial applications.
