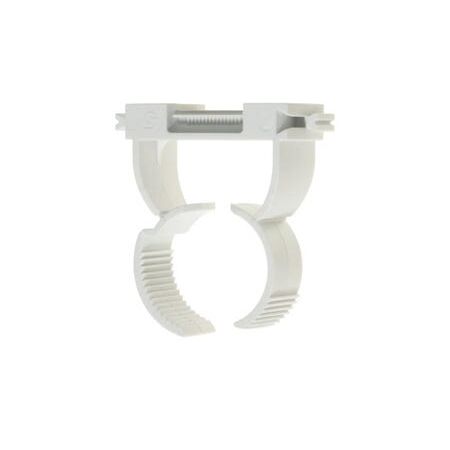

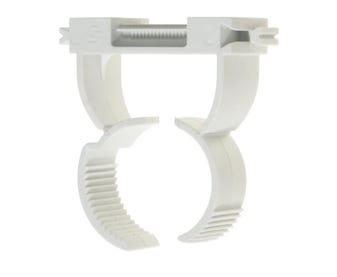

Caddy Conduit Clip 40mm | Push-In Installation | Halogen Free & UV-Stabilized by Cabac
The Cabac Caddy Conduit Clip 40mm offers fast and secure conduit installation with push-in design, suitable for various mounting surfaces and cable management needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy conduit clip 40mm
Brand: Cabac
SKU: SCEC50HO
Alternatively Known As: Plastic conduit clamp, conduit clip 40mm, cable conduit clip, push-in conduit clip
Technical Specifications
- Material: Acrylonitrile Butadiene Styrene (ABS)
- Temperature range: -10 to 80°C
- Non-flame propagating according to IEC 61386-25
- Passed 650°C glowing/hot-wire test per EN 60695-2
- Halogen free and UV-stabilized
- Dimensions (H x L x W): 20mm x 40mm x 40mm
- Weight: 0.02 kg
Key Features
- Push-in installation allows conduit to be snapped into the clip without closing or locking
- Can be mounted by direct screw or via multiple anchor options
- Clips can be connected together for neat cable runs, up to three per anchor or five between two anchors
- Non-flame propagating per IEC 61386-25
- Passed 650°C glowing/hot-wire test per EN 60695-2
- Halogen free and UV-stabilized
Professional Installation Requirements
- Professional installation recommended to ensure secure mounting and compliance with electrical standards.
Applications
- Electrical conduit management and support
- Cable routing and organization in residential, commercial, and industrial settings
- Mounting conduit on various surfaces using screws or anchors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free material reduces harmful emissions in case of fire
- UV-stabilized for long-lasting durability reducing replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac Caddy Conduit Clip 40mm is available now for immediate purchase. Ideal for electrical conduit management in residential, commercial, and industrial applications.
