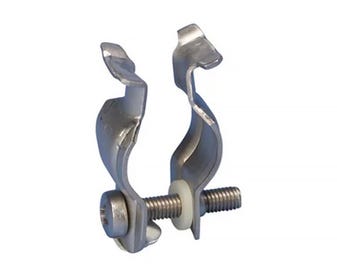

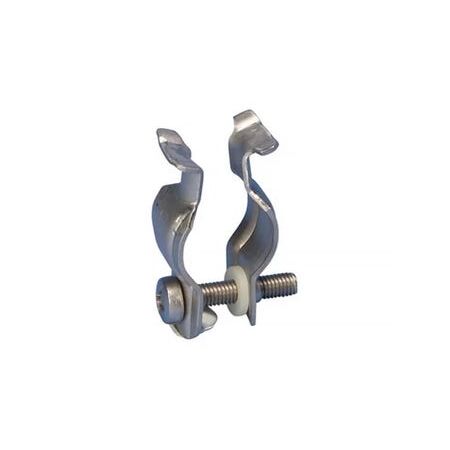

Caddy Pipe Clamp Stainless 304 | 16-20mm | Durable & Corrosion-Resistant | Vertical & Horizontal Mounting by Cabac

BRAND: CABAC
SKU: CR17-2-EA
$4.50 List price: $5.40
+
The Caddy Pipe Clamp Stainless 304 16-20mm is a durable pipe fastening solution made from high-quality 304 grade stainless steel, suitable for use with Caddy beam clamps or strut systems.

Product Name/Title: Caddy Pipe Clamp Stainless 304 16-20mm SOLD EA

Brand: Cabac

SKU: CR17-2-EA

Alternatively Known As: Stainless Steel Pipe Clamp, Caddy Stainless Clamp, 304 SS Pipe Clamp, Pipe Support Clamp

Technical Specifications
  • Material: 304 grade Stainless Steel (EN 1.4301)
  • Pipe Outer Diameter: 16-20mm
  • Width: 16mm
  • Load rating vertical load: 56 Kg
  • Load rating horizontal load: 12.5 Kg
  • Dimensions (H x L x W): 20mm x 50mm x 16mm
  • Weight: 0.1 kg
Key Features
  • Fits to either CADDY beam clamps or strut with slotted holes
  • Captive thread to prevent bolt loss
  • Rated for vertical and horizontal mounting with varying load ratings
  • Made from durable 304 grade stainless steel (EN 1.4301)
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with pipe support systems to ensure secure and compliant mounting.
Applications
  • Pipe support and fastening in construction and industrial settings
  • Use with Caddy beam clamps or strut with slotted holes
  • Suitable for mounting pipes vertically or horizontally
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Made from corrosion-resistant stainless steel for long service life reducing replacement waste
  • Supports sustainable construction by providing reliable pipe support
Warranty Information

Standard manufacturer warranty applies; typically 1 year against manufacturing defects.

Available Now

The Caddy Pipe Clamp Stainless 304 16-20mm is available now for immediate purchase. Ideal for industrial, commercial, and construction pipe support applications.
