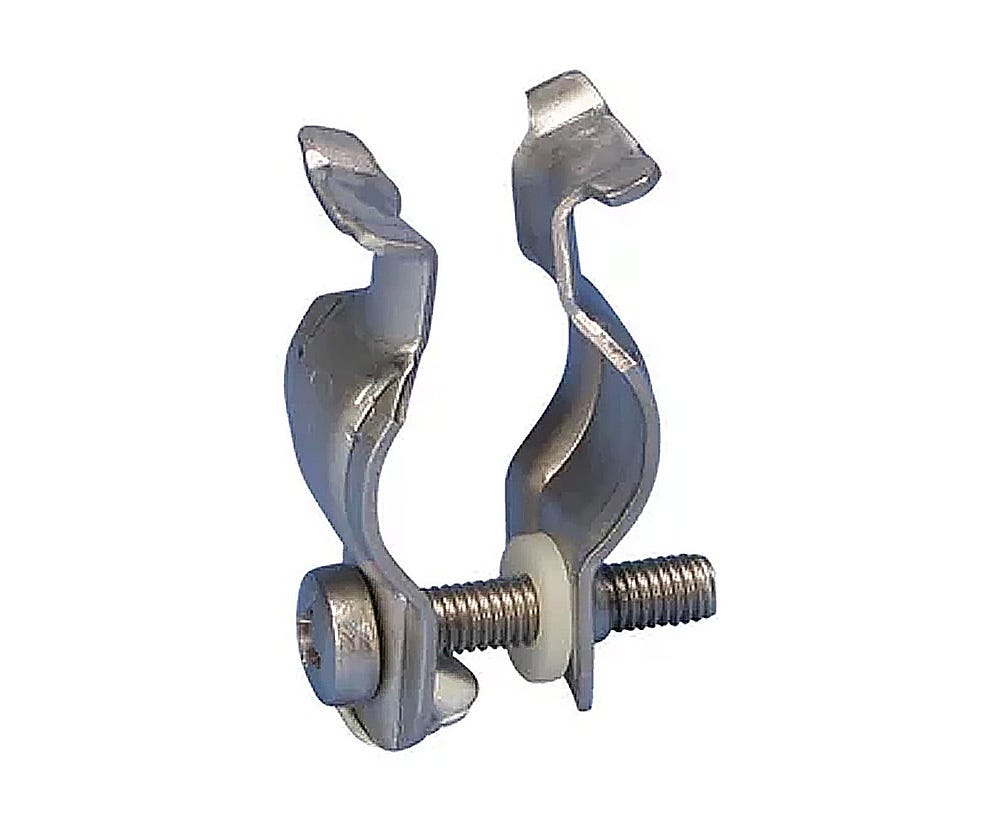

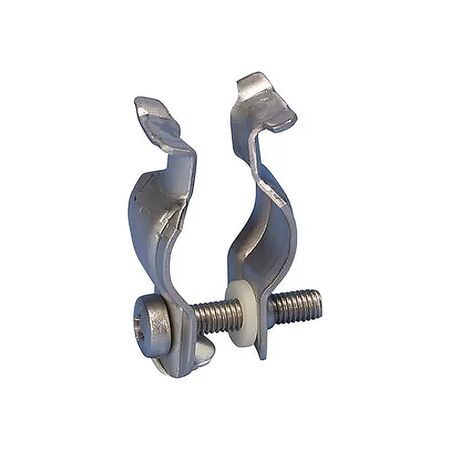

Caddy Pipe Clamp Stainless Steel 20-25mm | 304 Grade | Captive Thread | Vertical/Horizontal Mounting | @EA of 1 | by Cabac
Caddy Pipe Clamp Stainless Steel 20-25mm is designed for reliable structural support in commercial and industrial applications. Made from durable 304 grade stainless steel, it features a captive thread to prevent bolt loss and is suitable for both vertical and horizontal mounting. Ideal for plumbing, HVAC, and electrical conduit installations, this clamp ensures long-lasting performance and compliance with structural standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 304 Grade Stainless Steel (EN1.4301)
- Size Range: 20-25mm pipe diameter
- Mounting: Compatible with CADDY beam clamps or strut with slotted holes
- Thread: Captive thread to prevent bolt loss
- Load Rating: Suitable for vertical or horizontal mounting (load rating varies)
- Dimensions (H x L x W): 20mm x 50mm x 25mm
- Weight: 0.2 kg
Key Features
- Fits to either CADDY beam clamps or strut with slotted holes
- Captive thread to prevent bolt loss
- Rated for vertical or horizontal mounting with varying load ratings
- Constructed from durable 304 grade stainless steel (EN1.4301) for corrosion resistance
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure secure mounting and compliance with structural standards.
Applications
- Structural support for piping systems in commercial and industrial buildings
- Mounting pipes vertically or horizontally on CADDY beam clamps or strut channels
- Use in plumbing, HVAC, and electrical conduit installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from 304 stainless steel which is recyclable and corrosion resistant, extending product life and reducing replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The Cabac Caddy Pipe Clamp Stainless Steel 304 20-25mm is available for immediate purchase, ideal for structural pipe support applications in commercial and industrial settings.
