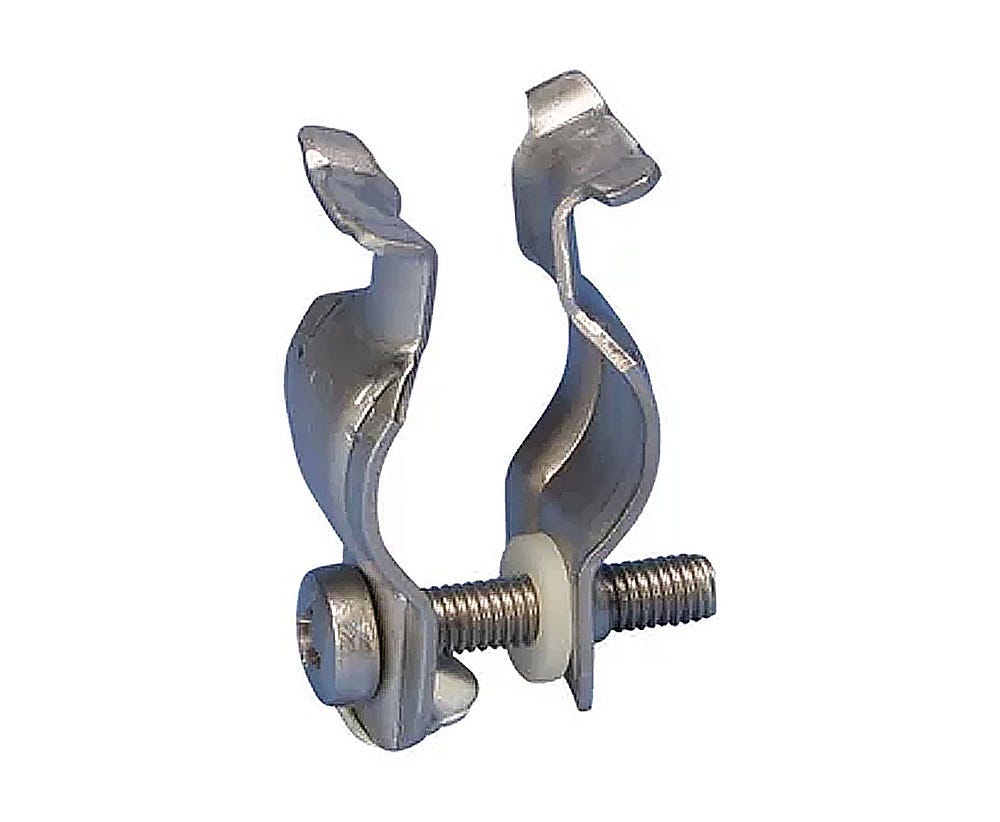

Caddy Pipe Clamp Stainless Steel 47-51mm | Durable 304 SS | Captive Thread Design | @Each of 1 | by Cabac
Caddy Pipe Clamp Stainless Steel 47-51mm is designed for reliable structural support in piping systems. Constructed from durable 304 grade stainless steel, it features a captive thread to prevent bolt loss and is compatible with CADDY beam clamps or struts. Ideal for both vertical and horizontal mounting, this clamp is perfect for industrial and commercial construction projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy Pipe Clamp Stainless Steel 47-51mm | Durable 304 SS | Captive Thread Design | @Each of 1 | by Cabac
Brand: Cabac
SKU: CR48-2-EA
Alternatively Known As: Stainless Steel Pipe Clamp, Caddy Clamp 47-51mm, Pipe Support Clamp, 304 SS Pipe Clamp
Technical Specifications
- Material: 304 Grade Stainless Steel (EN1.4301)
- Size Range: 47-51mm pipe diameter
- Mounting: Compatible with CADDY beam clamps or strut with slotted holes
- Thread: Captive thread to prevent bolt loss
- Load Rating: Suitable for vertical or horizontal mounting (load varies)
- Dimensions (H x L x W): 20mm x 60mm x 51mm
- Weight: 0.3 kg
Key Features
- Fits to either CADDY beam clamps or strut with slotted holes
- Captive thread to prevent bolt loss
- Rated for vertical or horizontal mounting with varying load ratings
- Constructed from durable 304 grade stainless steel (EN1.4301)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure secure mounting and compliance with structural standards.
Applications
- Structural support for piping systems
- Mounting pipes vertically or horizontally on beams or struts
- Industrial and commercial construction projects
- Plumbing and mechanical installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from corrosion-resistant 304 stainless steel for long service life reducing replacement waste
- Supports sustainable construction by providing durable and reusable pipe support solutions
Warranty Information
Standard manufacturer warranty against defects applies; please refer to Cabac for specific terms.
Available Now
The Caddy Pipe Clamp Stainless Steel 304 47-51mm is available for immediate purchase, ideal for structural pipe support in industrial and commercial applications.
