Caddy Purlin Clip C-Channel Clip | 1.5-6mm Flange Compatibility | 68 Kg Load Capacity | Electrogalvanized Steel by Cabac
The Cabac Caddy Purlin Clip provides a quick and secure attachment point to C-Channel roofing frames for SpeedLink wire catenary or chain installations, supporting loads up to 68 Kg.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

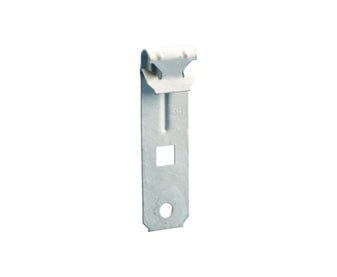

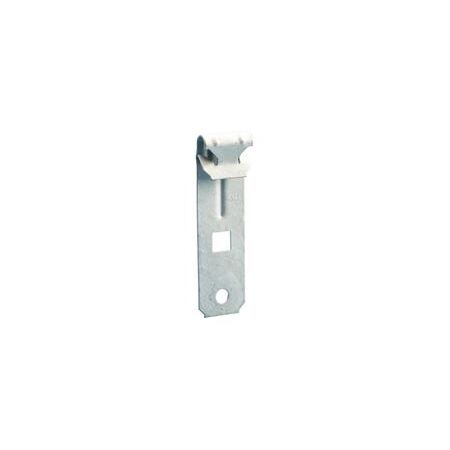

Product Name/Title: Caddy Purlin Clip C-Channel Clip 1.5-6mm
Brand: Cabac
SKU: VF14
Alternatively Known As: C-Channel Anchor Clip, Purlin Anchor Clip, SpeedLink C-Channel Clip, Wire Suspension Clip
Technical Specifications
- Material: Electrogalvanized Spring Steel
- Flange Thickness Compatibility: 1.5-6mm
- Hole Size: 7.1mm
- Maximum Load: 68 Kg
- Box Quantity: 100 pieces
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.1 kg
Key Features
- Allows easy installation of an anchor point to a C-Channel roofing frame
- Compatible with flange thickness from 1.5mm to 6mm
- Hole size of 7.1mm for secure attachment
- Max load capacity of 68 Kg
- Electrogalvanized spring steel material for durability
- Installs quickly by hammering onto the flange
- Can be installed from floor level using VAFT tool and conduit
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with roofing and suspension systems to ensure secure and safe attachment.
Applications
- Installation of anchor points on C-Channel roofing frames
- Support for SpeedLink wire catenary systems or chains
- Wire suspension systems in construction and roofing
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electrogalvanized steel provides corrosion resistance, extending product life and reducing replacement waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Caddy Purlin Clip C-Channel Clip 1.5-6mm is available for immediate purchase, ideal for roofing and wire suspension system installations.
