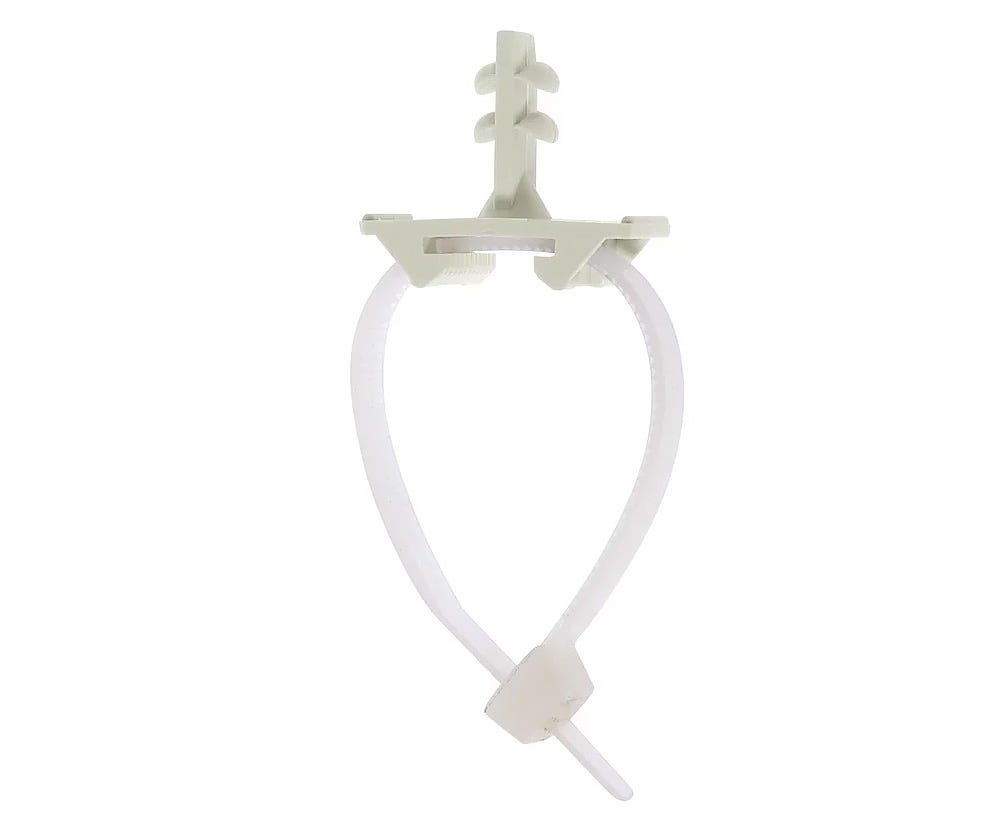

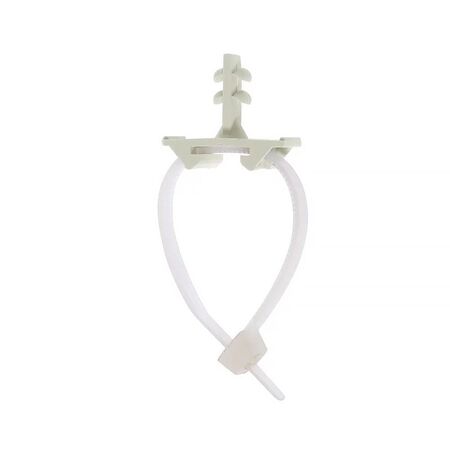

Caddy Push-In Concrete Anchor 45mm | Supports 25.5Kg | Halogen Free & UV Stabilized | @Each of 1 | by Cabac
The Caddy Push-In Concrete Anchor 45mm is designed for securing cables and conduits to concrete ceilings and walls. With a robust load rating of 25.5Kg, this anchor is made from halogen-free, UV-stabilized plastic, ensuring durability and compliance with building codes. Ideal for both electrical and construction applications, it supports multiple plastic conduit installations from a single anchor.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy Push-In Concrete Anchor 45mm | Supports 25.5Kg | Halogen Free & UV Stabilized | @Each of 1 | by Cabac
Brand: Cabac
SKU: SCESD45
Alternatively Known As: Concrete Cable Anchor, Push-In Concrete Fastener, Cable Fixing Anchor
Technical Specifications
- Anchor length: 45mm
- Load rating: Supports up to 25.5Kg
- Material: Halogen free, UV stabilized plastic
- Tested to 650°C glowing/hot-wire wire test per EN 60695-2
- Compatible with SCFC and SCEC series plastic conduit supports
- Dimensions (H x L x W): 45mm x 10mm x 10mm
- Weight: 0.1 kg
Key Features
- Rated to support up to 25.5Kg
- Supports up to three plastic conduit supports from one anchor
- Halogen free and UV-stabilized for durability
- Passed 650°C glowing/hot-wire wire test per EN 60695-2
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure secure anchoring and compliance with building codes.
Applications
- Securing cable or conduit to concrete ceilings
- Fastening cable bundles in concrete or brick walls
- Supporting plastic conduit supports in construction and electrical installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen free material reduces environmental impact
- UV stabilization extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for detailed warranty terms.
Available Now
The Cabac Caddy Push-In Concrete Anchor 45mm is available for immediate purchase, ideal for electrical and construction applications requiring secure cable and conduit fastening.
