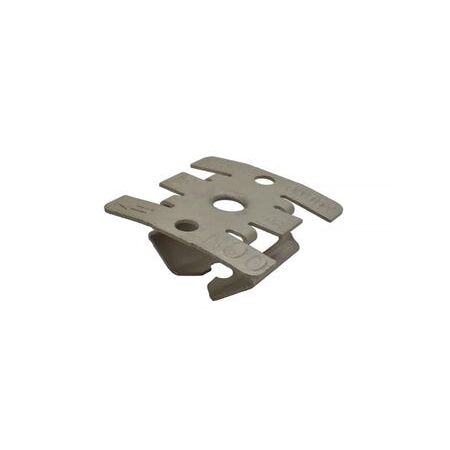

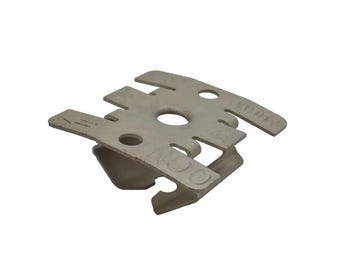

Caddy Quick Insert Strut Nut M10 | Electrogalvanized Finish | 48 Kg Load Rating | Easy Push-to-Install Design by Cabac
The Cabac Caddy Quick Insert Strut Nut M10 offers a fast and reliable solution for mounting hardware and threaded rods to strut systems with a unique push-to-install technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy Quick Insert strut nut M10
Brand: Cabac
SKU: 6QCN
Alternatively Known As: Strut Nut M10, Quick Insert Strut Nut, Push-to-Install Strut Nut, Caddy Strut Nut
Technical Specifications
- Material: Spring Steel
- Finish: Electrogalvanized
- Diameter: 6mm metric
- Torque: 8Nm
- Load rating F1: 48 Kg
- Load rating F2: 13 Kg
- Load rating F3: 23 Kg
- Dimensions (H x L x W): 10mm x 20mm x 20mm
- Weight: 0.05 kg
Key Features
- Easy push-to-install design allows quick installation by simply pushing the threaded rod through the mounting hole
- Works with slightly damaged threads and minor burrs on the threaded rod
- Integrated design eliminates the need for finicky spring nuts and loose hardware
- Shockingly quick install of threaded rod or bolts
- Use with hex nut on threaded rod or truss head bolt for fast mounting
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with strut systems and load requirements to ensure safety and compliance.
Applications
- Suspended systems installation
- Mounting hardware directly to strut
- Fast installation of prefabricated trapeze systems
- Wall mounting electrical boxes and other services
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electrogalvanized finish provides corrosion resistance extending product life and reducing waste
- Durable spring steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Caddy Quick Insert Strut Nut M10 is available now for immediate purchase. Ideal for fast and secure mounting in electrical and mechanical support systems.
