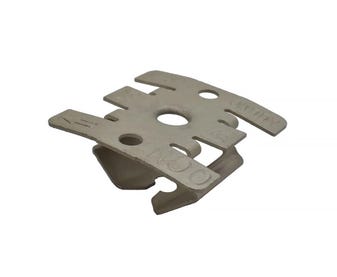

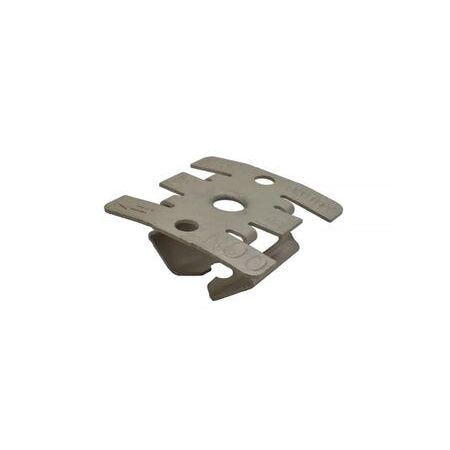

Caddy Quick Insert Strut Nut M12 | Push-to-Install Design | Electrogalvanized Finish | 56 Kg Load Rating by Cabac
The Cabac Caddy Quick Insert Strut Nut M12 offers a fast and reliable solution for mounting threaded rods and bolts into strut channels, featuring a push-to-install design and durable spring steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy Quick Insert strut nut M12
Brand: Cabac
SKU: 8QCN
Alternatively Known As: Strut Nut M12, Quick Insert Strut Nut, Push-to-Install Strut Nut, Caddy Strut Nut, Spring Steel Strut Nut
Technical Specifications
- Material: Spring Steel
- Finish: Electrogalvanized
- Diameter: 8mm metric
- Torque rating: 8Nm
- Load rating F1: 56 Kg
- Load rating F2: 13 Kg
- Load rating F3: 23 Kg
- Dimensions (H x L x W): 20mm x 20mm x 20mm
- Weight: 0.05 kg
Key Features
- Easy push-to-install design for quick and secure installation
- Works with slightly damaged threads and minor burrs on threaded rods
- Integrated design eliminates need for separate spring nuts and loose hardware
- Shockingly quick installation of threaded rods or bolts
- Electrogalvanized finish for corrosion resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with strut systems and load requirements to ensure safety and compliance.
Applications
- Suspended systems installation using threaded rods
- Mounting hardware directly to strut channels
- Prefabricated trapeze systems assembly
- Wall mounting electrical boxes and other services
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable electrogalvanized finish extends product life reducing replacement frequency
- Simplified installation reduces labor time and associated energy use
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac Caddy Quick Insert Strut Nut M12 is available now for immediate purchase. Ideal for fast and secure installation in electrical, mechanical, and construction applications.
