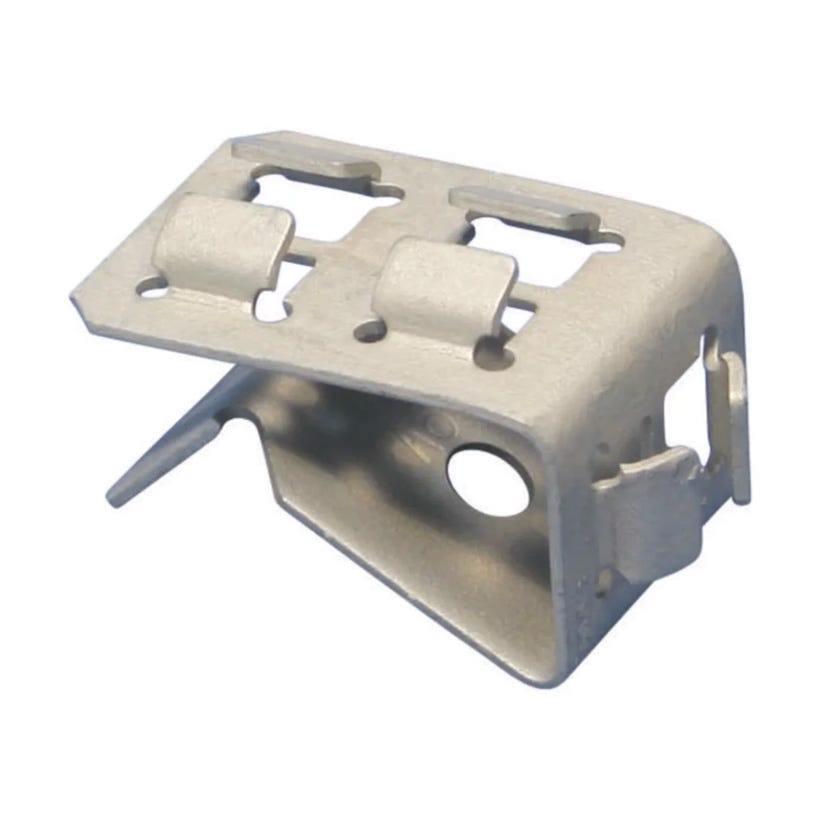

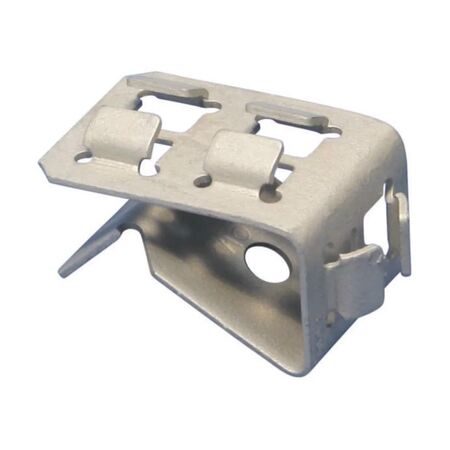

Caddy Snap Clip Adapter 3-12mm Flange | Holds 3 Clips | Hammer Fit Installation | by Cabac
The Caddy Snap Clip Adapter 3-12mm Flange is designed for easy mounting of snap clips on thicker flanges, accommodating flange thicknesses from 3mm to 12mm. Ideal for structural attachments and cable management in industrial and construction settings, this adapter allows for quick installation using just a hammer, making it a practical choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Compatible with Caddy Snap Clip 24SC range
- Flange thickness compatibility: 3mm to 12mm
- Holds up to three snap clips
- Installation method: hammer fit
- Clip orientation: two parallel slots, one perpendicular slot
- Dimensions (H x L x W): 20mm x 70mm x 50mm
- Weight: 0.1 kg
Key Features
- Provides a simple way to mount snap clips to thicker flanges
- Can accommodate up to three snap clips
- Suitable for flange thicknesses from 3mm to 12mm
- Two clips run parallel and one runs perpendicular to the flange
- Installation requires only a hammer, no special tools needed
Professional Installation Requirements
- Installation can be performed by qualified tradespeople or technicians familiar with structural fastening hardware; no specialized tools required beyond a hammer.
Applications
- Structural attachments and support for electrical and mechanical installations
- Mounting snap clips on thicker flanges in construction and industrial settings
- Cable management in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste
- Supports organized cable management which can improve system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for detailed warranty terms.
Available Now
The Cabac Caddy Snap Clip Adapter 3-12mm Flange is available for immediate purchase, ideal for structural and cable management applications in industrial and construction projects.
