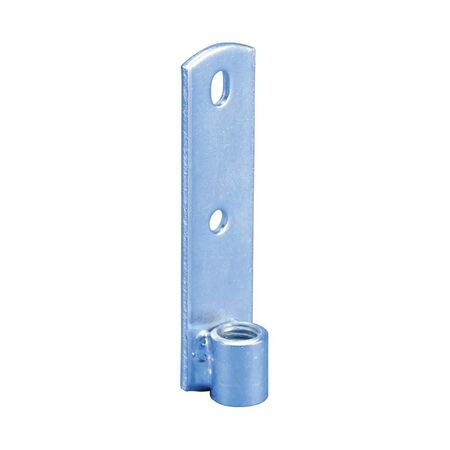

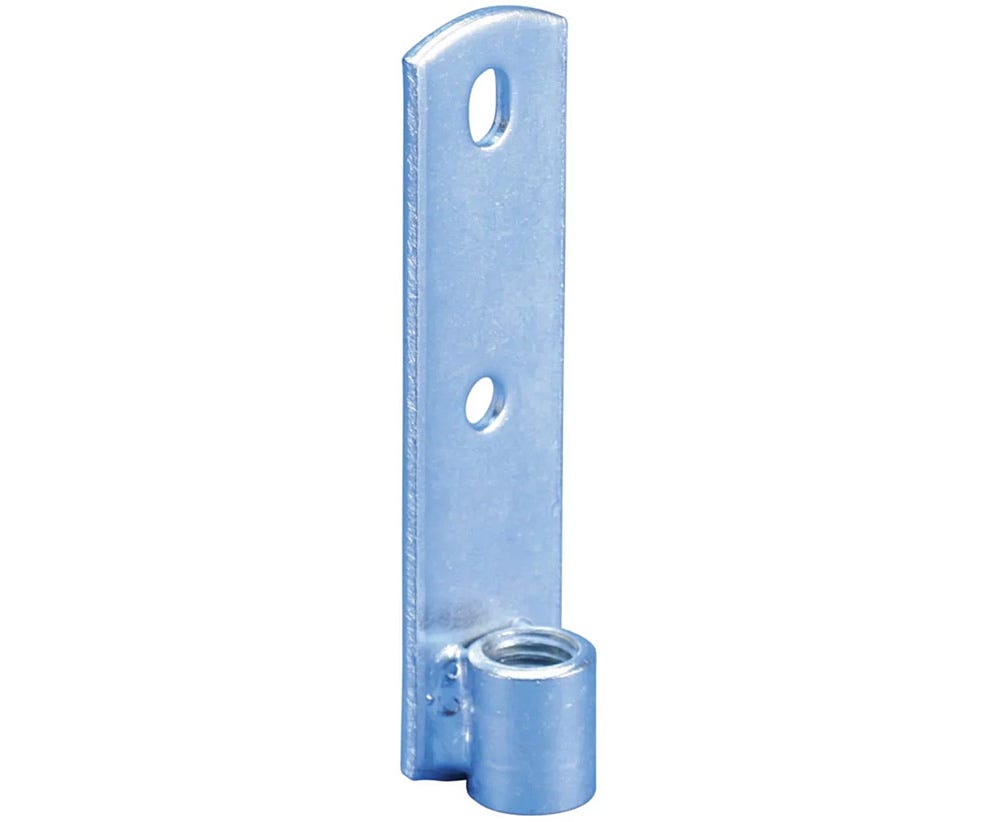

Caddy Vertical Mounting Plate M12 | Steel with Protective Coating | Pre-Threaded Captive Nut | Vertical Installation | @EA of 1 | by Cabac
The Caddy Vertical Mounting Plate M12 is designed for securing pipes and struts to wood, concrete, or steel structures. Made from durable steel with a protective coating, it features a pre-threaded captive nut for easy adjustments, eliminating the need for additional hardware. Ideal for construction and industrial applications, this plate ensures secure vertical mounting and compliance with structural standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Steel with protective coating
- Thread Size: M12 captive nut
- Mounting Surface: Suitable for wood, concrete, or steel
- Installation: Vertical mounting
- Function: Provides captive threaded nut for threaded rod insertion
- Dimensions (H x L x W): 150mm x 50mm x 100mm
- Weight: 0.5 kg
Key Features
- Supports pipe from wood, concrete or steel structures
- Installs on vertical mounting surface
- Pre-threaded captive nut allows for easy adjustment
- Eliminates the need for additional hardware
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure secure mounting and compliance with structural standards.
Applications
- Securing pipes, struts, trays, and other suspended items to wood, concrete, or steel structures
- Vertical mounting surface installations in construction and industrial settings
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduces need for additional hardware, minimizing material waste
- Durable design extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Caddy Vertical Mounting Plate M12 is available for immediate purchase, ideal for construction and industrial suspension applications.
