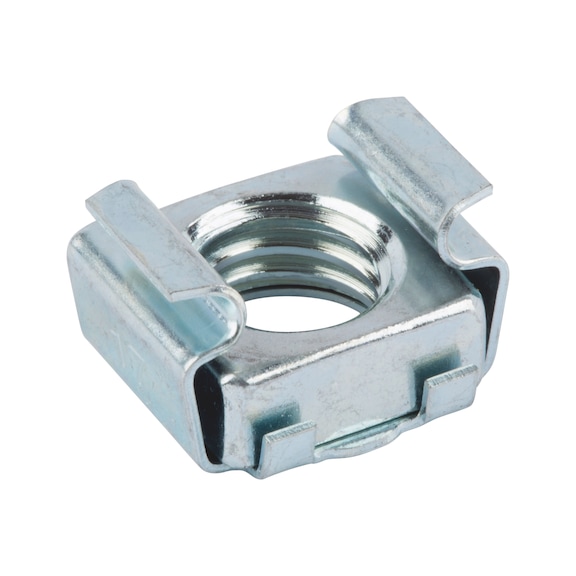

Cage Nut WN 0381 | Zinc-Plated Steel | Blue Passivated | Reusable Design | @Pack of 25 | by Wurth
Cage Nut WN 0381 is designed for efficient installation in sheet metal structures, featuring a zinc-plated steel construction with a blue passivated finish. This reusable design is perfect for tight spaces and compensates for manufacturing tolerances, making it ideal for various metal assembly applications. Ensure reliable connections with this self-adhesive, easy-to-install nut.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cage Nut WN 0381 | Zinc-Plated Steel | Blue Passivated | Reusable Design | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 38161
Alternatively Known As: Sheet Metal Cage Nut, Press-in Cage Nut, Zinc Plated Cage Nut, Internal Sheet Metal Connector
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- Thread type x nominal diameter (D): M6
- Max. width (b1): 13.5 mm
- Max. length (a1): 14.2 mm
- Height (h1): 9.5 mm
- Min./max. material thickness: 1.7-2.7 mm
- Punched-hole width x punched-hole length (n): 9.5 x 9.5 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 9.5mm x 14.2mm x 13.5mm
- Weight: 0.05 kg
Key Features
- Efficient installation by simply pressing in
- Self-adhesive due to spring-steel nut holder
- Compensates for manufacturing tolerances with longitudinal and lateral mobility of the nut
- Can be reused
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper fitting and safety.
Applications
- Used as internal connectors for sheet metal structures
- Suitable for difficult installation conditions or tight spaces
- Ideal for reuse in various metal assembly applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reusable design reduces waste
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Cage Nut WN 0381 zinc-plated steel is available for immediate purchase, ideal for sheet metal assembly and industrial applications.
