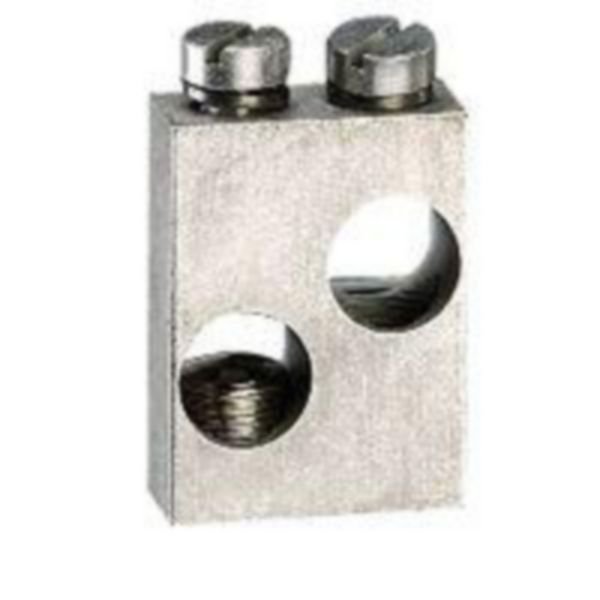

Cage Terminals for DPX 1600 | Rigid 2x240 mm² & Flexible 2x185 mm² | Secure Connection | by Legrand
Cage terminals for DPX 1600 are designed for secure connections with rigid cables up to 2x240 mm² and flexible cables up to 2x185 mm². Ideal for electrical switchboards and modular circuit breaker installations, these terminals ensure compliance with IEC 60947-3 standards and feature an integrated padlock for added safety. Perfect for industrial and commercial electrical distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cage Terminals for DPX 1600 | Rigid 2x240 mm² & Flexible 2x185 mm² | Secure Connection | by Legrand
Brand: Legrand
SKU: 026269
Alternatively Known As: DPX 1600 Cage Terminals, Legrand Cable Terminals, Electrical Cage Connectors for DPX Switches
Technical Specifications
- Number of poles: 1
- Connection type: Screwing
- Mounting method: Screw
- Contact safe: No
- Compatible cable sizes: 2 x 240 mm² rigid, 2 x 185 mm² flexible
- Height: 25 mm
- Width: 50 mm
- Depth: 67 mm
- Dimensions (H x L x W): 25mm x 67mm x 50mm
- Weight: 0.5 kg
Key Features
- Compatible with DPX 1600 isolating switches (800 to 1600 A)
- Connection with cage terminals for secure cable attachment
- Supports rigid cables 2x240 mm² and flexible cables 2x185 mm²
- Padlock integrated in the handle for safety
- Supplied with terminal shields for protection
- Conforms to IEC 60947-3 standards
- Category of use AC 23 A
- Accepts electrical auxiliaries
- Mountable on plate in XL³ enclosures
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper connection.
Applications
- Electrical switchboards and power cabinets
- Modular switches and circuit breakers installations
- Industrial and commercial electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports efficient electrical connections reducing energy loss
Warranty Information
Standard Legrand warranty applies, typically 1-3 years depending on region and product registration.
Available Now
Legrand Cage Terminals for DPX 1600 are available for immediate purchase, ideal for use in electrical switchboards and modular circuit breaker installations.
